GigaWatt PF-1e + PowerSync Power Cord

The PF-1e is a simplified, economical version of the PF-1 MK2 power strip. Keeping a similar architecture of the main filter allowed for the same level of protection to the connected devices,

while savings in used components lowered its price significantly. Nevertheless the PF-1e is a brilliant device, which will prove itself in each – even very advanced audio-video system.

Available socket types: EU (Schuko), US (Nema 5-20R), AU (AS/NZS 3112)
Line voltage: 220-240 VAC 50/60 Hz lub 110-120 VAC 50/60 Hz
Maximum output power : 3 680 W
Maximum current load: 16 A
Absorbed impulse current: 13 000 A
Dimensions (L x W x H): 420 x 75 x 65 mm
Gross weight: 2,5 kg

Designing the PF-1e we resigned from the most expensive components. This does not mean, that we used lower quality items or lowered the level of guaranteed safety.

The architecture of the main anti-interference filter and the overvoltage protection remained unchanged compared to the PF-1 EVO strip. Interference is blocked by a RLC filter block.

It was built around high quality metalized polyester capacitors with low inductance and an IP (Iron Powder) filtering core. All elements of the filter are mounted using silver solder on a massive PCB with large cross-section traces.

In the power strip we resigned from using traditional protective elements like cartridge or thermal fuses, which have a detrimental influence on the sound as they throttle the current flowing to the protected device.

The overvoltage protection of the power strip is based on a cascade of protective elements like plasma spark gaps and new generation of UltraMOV varistors. Working together with a properly made in-wall electrical grid, this setup guarantees a complete protection against overvoltage and overcurrent.

The massive chassis of the power strip is made completely out of metal. It constitutes also a perfectly sealed shield protecting from RFI and EMI interference. In the PF-1e we resigned from the signal LED and the distribution rails. The internal cabling is made from copper conductors with 2.5 QMM diameter.

There are six Schuko output sockets. The PF-1e is also available with NEMA 5-20R sockets, used in United States and some Asian countries, as well as Australian type sockets AS/NZS 3112.

The PF-1e has an IEC input socket, which accepts all kinds of power cords. The strip is available in two versions: without cable and with a 1.5m power cord. To maximize the potential of the PF-1e we recommend the usage of the power cable PowerSync or PowerSync PLUS

This product is covered by an insurance policy for the connected equipment, with a total insurance value of 1000000 PLN. The insurance is valid only in the European Union member states territory.

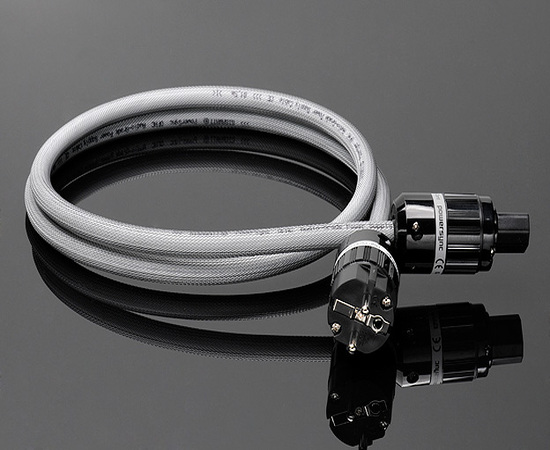

PowerSync is the entry model of the new GigaWatt power cords family, started by PowerSymc ULTRA (previously known as LC-3EVO).
The conductors are made from OFHC C10100 copper, with 5N purity, additionally annealed, to get a homogeneous structure and better conductivity.

The cable consists of three wires with a 14 AWG cross-section, insulated with PE dielectric. A single wire contains 10 strands with a diameter of 0.514mm.
The conductors are protected with a static shield made of plastic laminated aluminum foil. The tight construction of the screen, covering 100% of the cable surface,

perfectly protects against unwanted external EMI and RFI noise, and prevents the formation and propagation of internal interference. There is an additional drain wire under the screen.
The conductors are covered by an outer insulation of GA 70AT03 material, further surrounded by a nylon mesh braid.
All conductors are connected to the plug terminals mechanically, without soldering, which guarantees reliability and optimal performance.

PowerSync is an essential accessory for the PF-1e, PF-1EVO and PF-2EVO power strips.
The cable is equipped with high quality proprietary plugs-GigaWatt G-010 and G-030 (choice of IEC C15, IEC C19, SCHUKO, NEMA 5-20R, AS/NZS 3112).

Available plug types: EU (Schuko), US (Nema 5-20R), AU (AS/NZS 3112), IEC C15
Line voltage: 110-240 VAC / 50-60 Hz
Maximum load (continuous): 16 A
Net weight: 0,42kg
Gross weight:0,53 kg
Outer diameter: Ø 11mm
Lengths: 1.5 m standard,1m/2m/2.5m/3m or more by request
