Rotel Michi M8 Mono-Block Power Amplifier

Ο Rotel Michi M8 ειναι μονοκαναλος τελικος ενισχυτής (mono power amplifier) ισχυος 1x 1080 watts 8 ohms.

The stunning control and authoritative power of the Michi M8 Monoblock Amplifier is the result of a perfect balance of science meets art delivering 1,080 watts of Class AB power into 8 ohms and an astounding 1,800 watts

to the most demanding 4 ohm loudspeakers. The M8 is powered by a pair of custom engineered, low noise, in-house manufactured toroidal transformers supported by 4 British patented slit foil, high efficiency, low ESR bulk

storage capacitors for impactful bass with exceptional control under extreme loading conditions.

To achieve accuracy and its unsurpassed performance, the M8 is equipped with an array of 32 high current output transistors thus reducing the load on individual components and maintaining the crucial energy, rhythm and

timing throughout the amplification stages. Musical expression and detailed refinement were further accomplished through acoustic tuning of all critical components and a balanced circuit design.

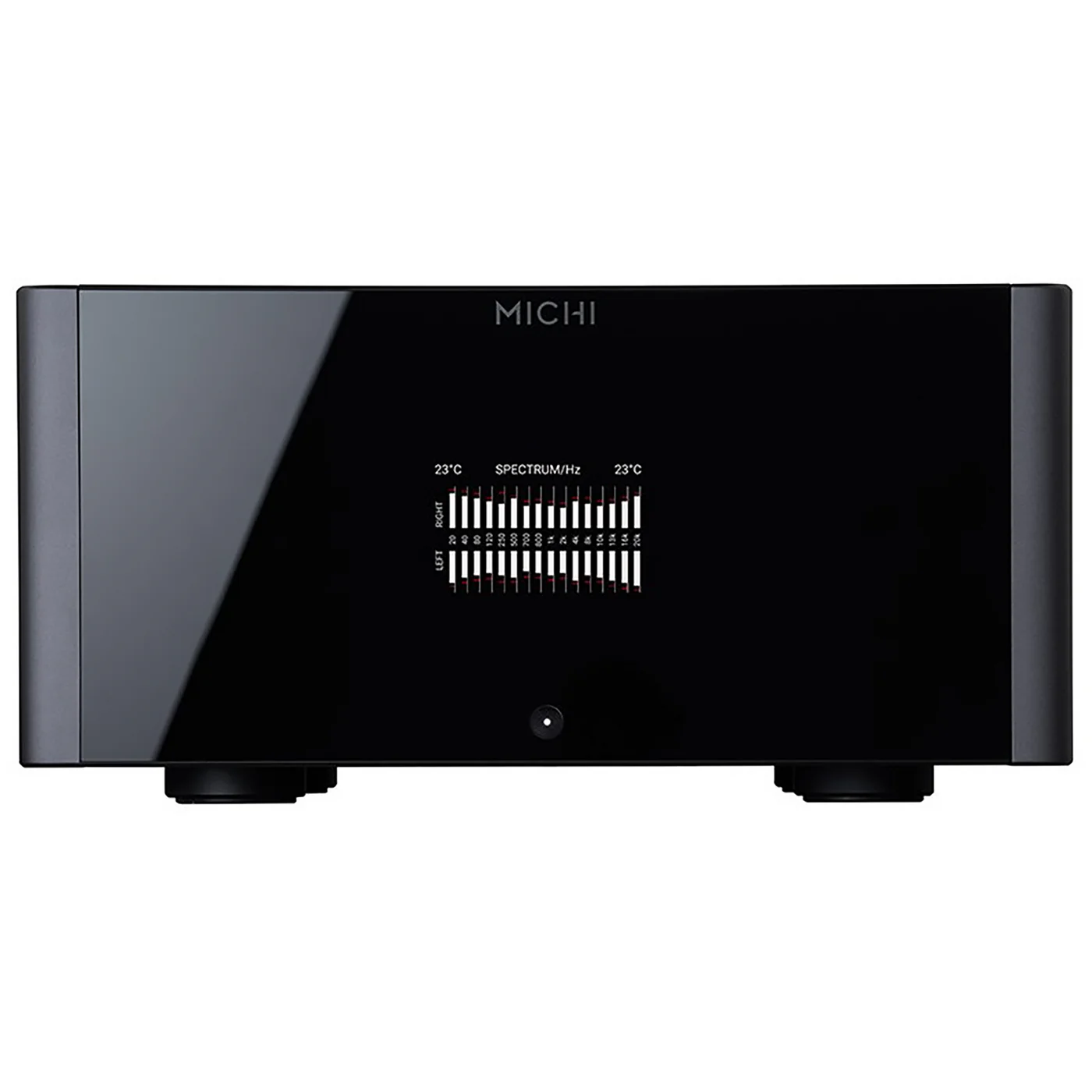

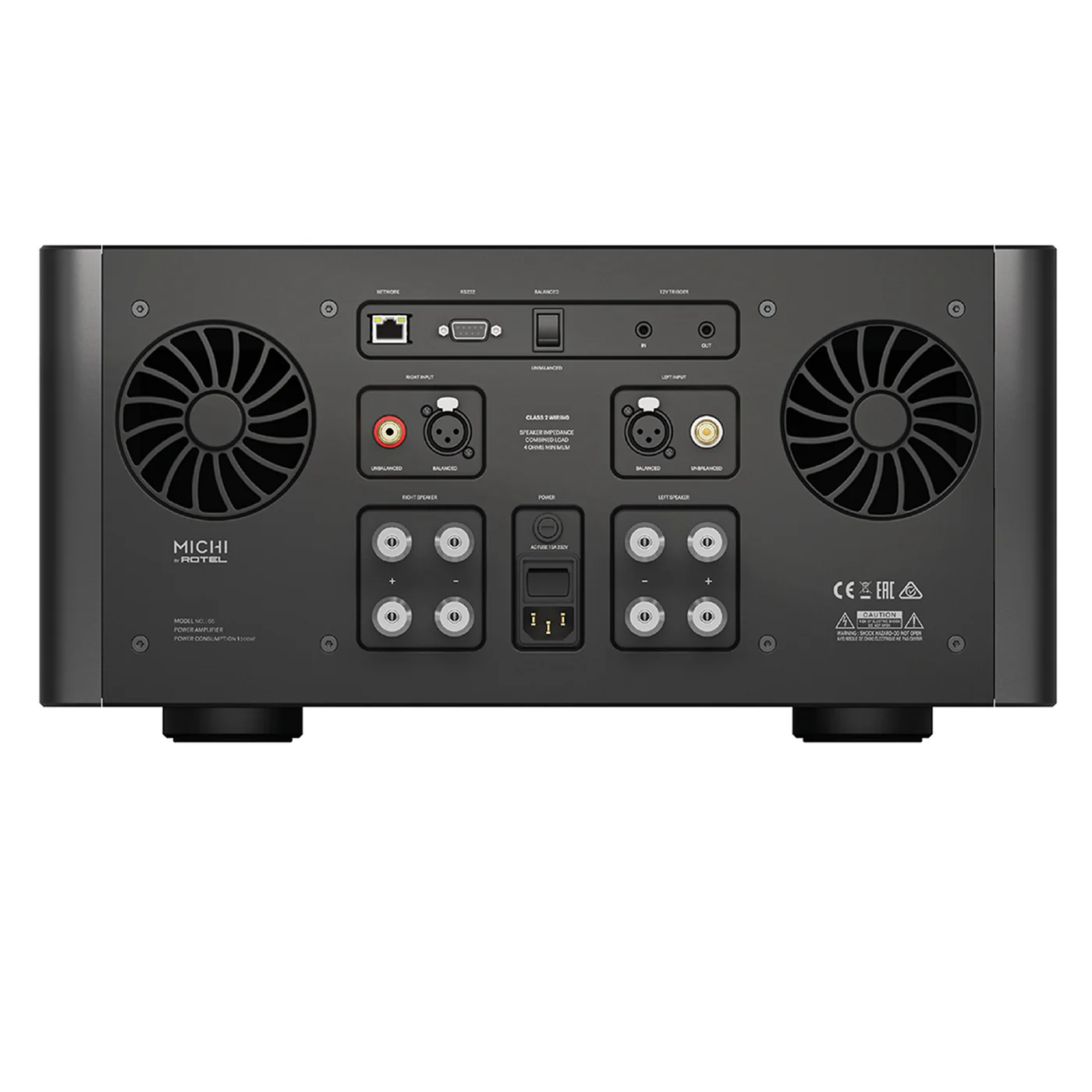

A high resolution display adorns the front panel supporting a peak power meter or spectrum analyzer. With XLR and RCA inputs, 2 sets of custom Michi speaker binding posts, remote control and fully featured RS232 and

Ethernet connections the M8 provides ultimate installation flexibility. Power amplification at its best in the most elegant of industrial designs.

Specifications

• Continuous Power Output: 1080W/Ch (8Ω), 1800W/Ch (4Ω)
• Total Harmonic Distortion (THD) <0.018%
• Frequency Response: 20Hz - 20kHz (+0dB, -0.15dB), 10Hz - 100kHz (+0dB, -0.5dB)
• S/N Ratio (IHF "A" Weighted) 120dB
• Gain: Unbalanced (RCA): 34dB, Balanced (XLR): 30dB
• Dimensions (W × H × D) 485 × 238 × 465mm
• Net Weight 59.1kg

Other Specifications

• Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
• Damping Factor 200
• Speaker Impedance 4Ω minimum
• Input Sensitivity: Unbalanced (RCA): 1.85V, Balanced (XLR): 3V
• Input Impedance: Unbalanced (RCA): 12.5kΩ, Balanced (XLR): 100kΩ
