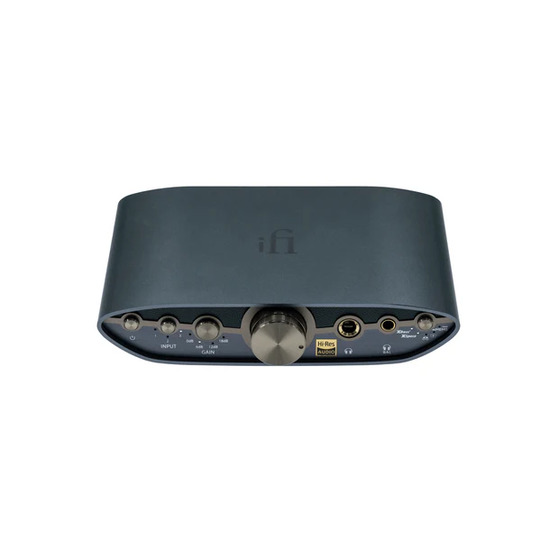

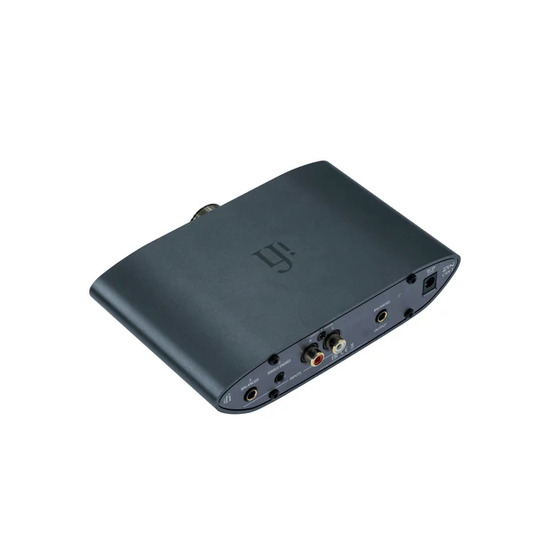

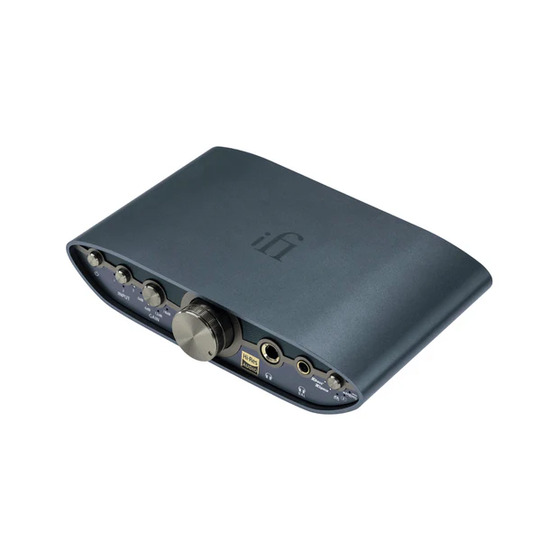

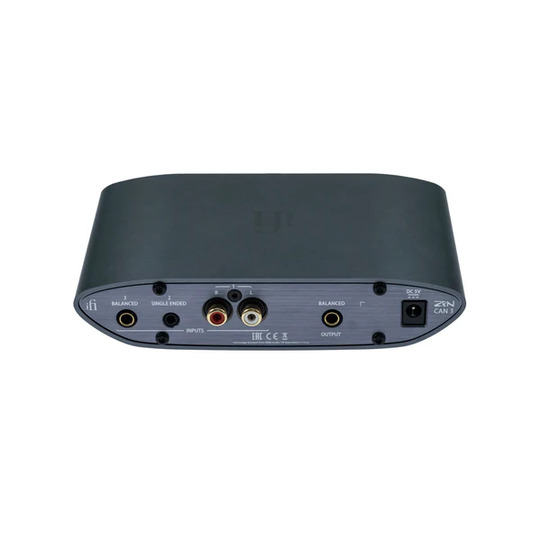

iFi Audio Zen Can V3

Διαθεσιμότητα: Delivery in 8 to 14 days

1,600mW Ενισχυτής ακουστικών με balanced και single ended έξοδο ακουστικών.

Ποσότητα:

249,00 €

Λεπτομέρειες
Πληροφορίες

Specifications

ANALOGUE INPUTS	SE RCA L/R: 2.0V nominal @ 0dBFS, 1MegOhm Zin SE 3.5mm: 1.0V nominal @ 0dBFS, 1 MegOhm Zin BAL 4.4mm: 4.0V nominal @ 0dBFS, 24kOhm Zin
DIMENSIONS	158x117x35mm (6.2x4.6x1.4”)
DNR	Line Section: ≥119dB(A) Headphone Section: BAL 4.4mm: ≥119dB(A) @ 0dBFS SE 6.35mm: ≥119dB(A) @ 0dBFS
FREQUENCY RESPONSE	10Hz-200kHz (-3dB)
GAIN	0dB, 6dB, 12dB, 18dB
HEADPHONE OUTPUT MAX	Headphone Section: BAL 4.4mm:>15.1V/385mW (@ 600 Ohms), >6.2V/1,200mW (@ 32 Ohms) SE 6.35mm: >7.6V/98mW (@ 600 Ohms), >7.2V/1,600mW (@ 32 Ohms)
HEADPHONE OUTPUT RMS	Headphone Section: BAL 4.4mm: >11.5V/2,000mW (@ 64 Ohms) SE 6.35mm: >7.2V/1,600mW (@ 32 Ohms)
INPUT VOLTAGE	DC: 5V/2.5A AC 100-240V, 50/60Hz
MAXIMUM INPUT LEVEL	SE RCA: 3.8V RMS SE 3.5mm: 1.92V RMS BAL 4.4mm: 7.4V RMS
NET WEIGHT	495g (1.09 lbs)
OUTPUT IMPEDANCE	Line Section: <200 Ohms Headphone Section: BAL 4.4mm HP: <2 Ohms SE 6.35mm HP: <1 Ohm
POWER CONSUMPTION	No Signal: ~5W Max Signal: ~13W
SNR	Line Section: ≥125dB (7.3V 4.4mm Input 0dB @ 200kOhm) Headphone Section: BAL 4.4mm: ≥125dB (7.3V 4.4mm Input 0dB @ 600 Ohms) SE 6.35mm: ≥122dB (1.9V Input 0dB @ 600 Ohms)
THD+N	Line Section: 0.006% (0dB 200kOhm load) Headphone Section: BAL 4.4mm: <0.006% (@ 360 mW/2.4V 16 Ohms) SE 6.35mm: <0.006% (@ 100mW/1.27V 16 Ohms)
