Due to their minimized moving mass, Moving Coil (MC) cartridges offer mind-bending speed in transients and breathtaking resolution. However, this perfection comes at a price: They produce very low output voltage and require "surgical" geometric adjustment. A small deviation that would go unnoticed on a simple MM cartridge will destroy the stereo image and cause distortion in an MC.

George Counnas of Zesto Audio points out that the diamond stylus must "read" the groove exactly as the cutting head did at the factory.

Overhang & Zenith: Using a precision protractor (such as Baerwald or Löfgren), the stylus must follow the ideal arc of the tonearm. The slightest error here increases tracking error, "hardening" the sound in the inner grooves.

Azimuth: Looking at the cartridge from the front, it must be perfectly vertical (90 degrees) to the record. If it tilts even by a fraction of a millimeter, one channel will sound louder, crosstalk will increase, and you will lose the holographic separation of the instruments.

Do not be afraid of the weight! George advises always aiming for the upper limit recommended by the manufacturer. If a cartridge asks for 1.8g to 2.2g, set it to 2.1g. A light stylus loses contact with the groove walls, "bounces" (mistracking), and hits the groove violently, causing dramatically more damage to the vinyl than a slightly heavier one that tracks stably.

Adjusting the tonearm height (Vertical Tracking Angle) determines the SRA (Stylus Rake Angle) – the angle at which the diamond "digs" into the groove. George's advice: Start with the tonearm perfectly parallel to the record. If the sound is too "sharp" and thin, lower the tail of the tonearm slightly (tail down). If the sound is "dark," slow, and muddy in the bass, raise it. MC cartridges, especially those with complex diamond profiles (Shibata, MicroLine), are transformed by this adjustment.

This is where electronic masterpieces like those from Zesto Audio make the difference. MC cartridges act as electrical generators and need electrical damping ("loading") to stop them from ringing (high-frequency ringing).

The secret: Start at the manufacturer's value (usually 100-500 Ohms), but trust your ears. If the sound is too bright and "empty," increase the loading (lower the Ohms). If the music sounds muffled and closed-in, give it some "air" by increasing the Ohms. In Zesto Phono Stages, this adjustment is done "on-the-fly" (during operation), allowing you to hear the difference in real-time.

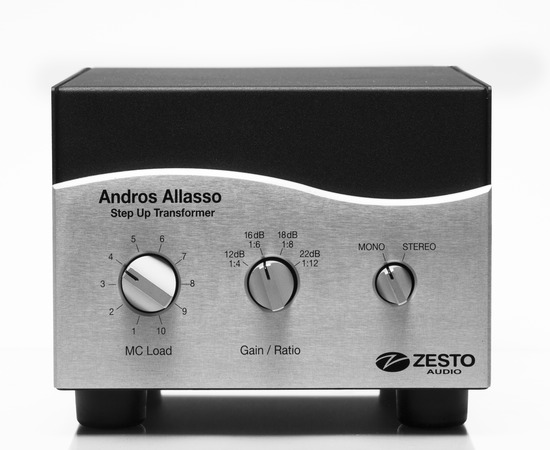

For analog purists, the Step-Up Transformer (SUT) is the Holy Grail for amplifying the microscopic signal of an MC cartridge before it reaches the Phono Stage.

What is an SUT: Unlike an active preamplifier that uses transistors or tubes to provide gain, the SUT is a 100% passive transformer. It increases signal voltage using exclusively magnetic induction.

The Quiet Advantage: Because there is no active electrical circuit, the SUT offers absolute galvanic isolation. It adds absolutely zero "hiss" or electronic noise floor. George Counnas firmly believes that transformers offer an unparalleled organic and musical texture to the sound. That is why, in Zesto Phono Stages, the MC input goes through built-in, ultra-premium Step-Ups, combining absolute passive silence with the magic of tube preamplification.

The use of an external or internal SUT requires mathematical "matching" (turns ratio) with the internal resistance of your cartridge. A poorly adjusted MC cartridge is just... disappointing. A perfectly set-up MC cartridge is a revelation. At Element Audio, we handle the microscopic, "surgical" setup of your analog system, ensuring that the dynamic range and detail will leave you literally speechless!
