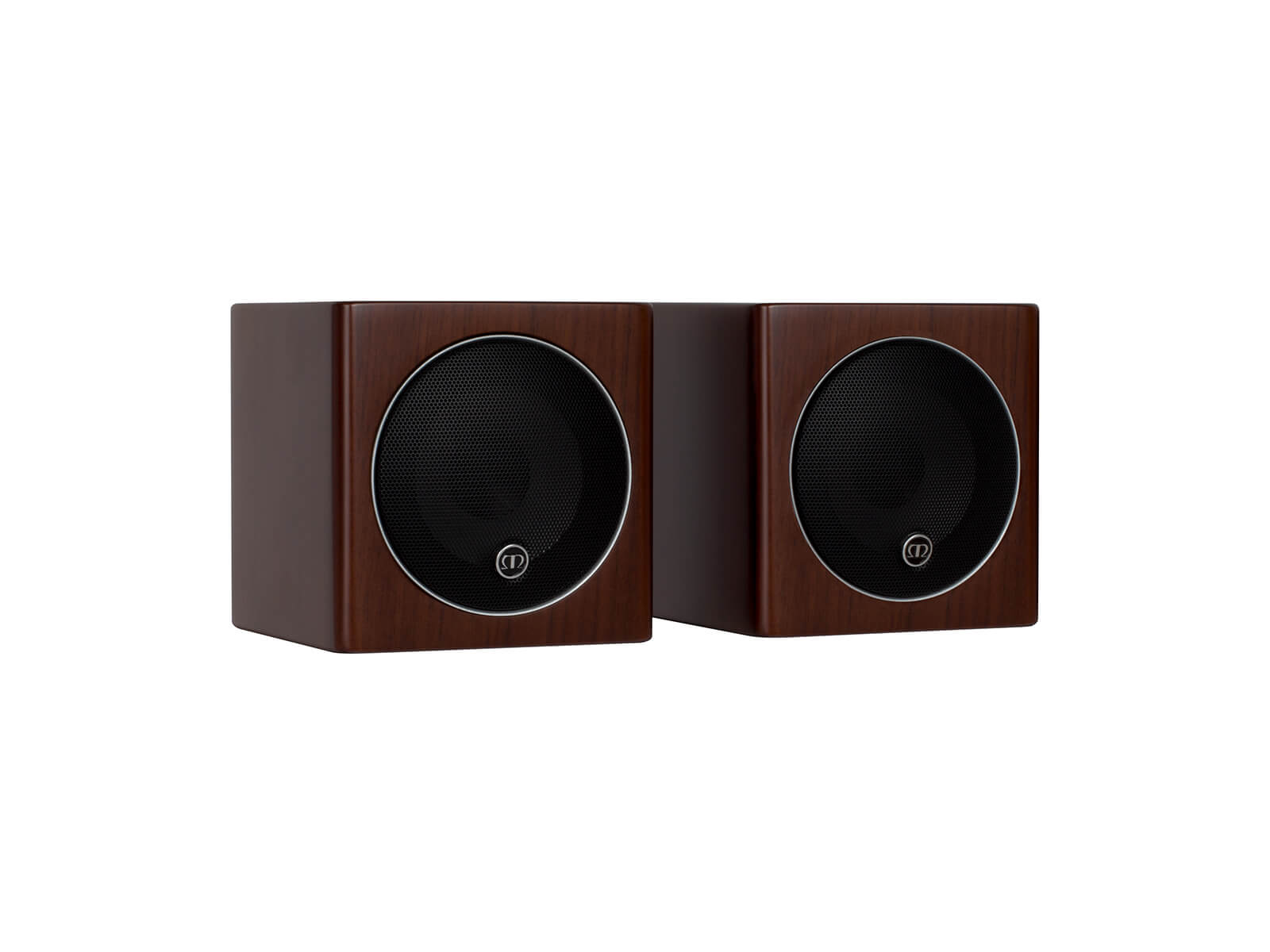

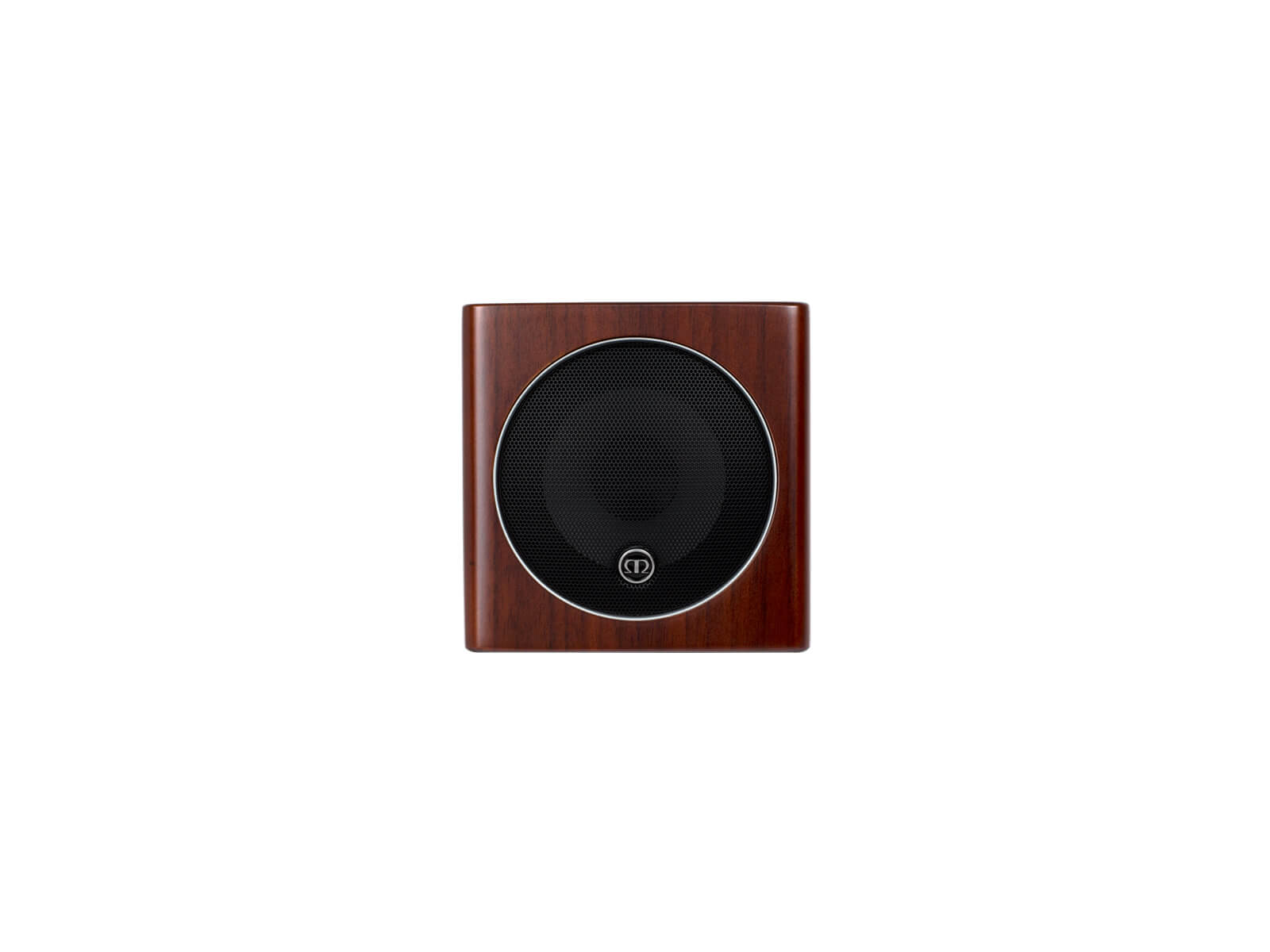

Radius 45

For ultra-discreet sound all around the home, or partnered with the Radius 380 sub for explosive stereo, the miraculously small Radius 45 houses a

3" MMP II mid-bass driver and rear-firing 3/4" C-CAM tweeter, and has no right to sound as good as it does.

Technology

• 3" MMP II Driver. All drivers are dedicated and model specific, with each model in the Radius series being designed and voiced individually.

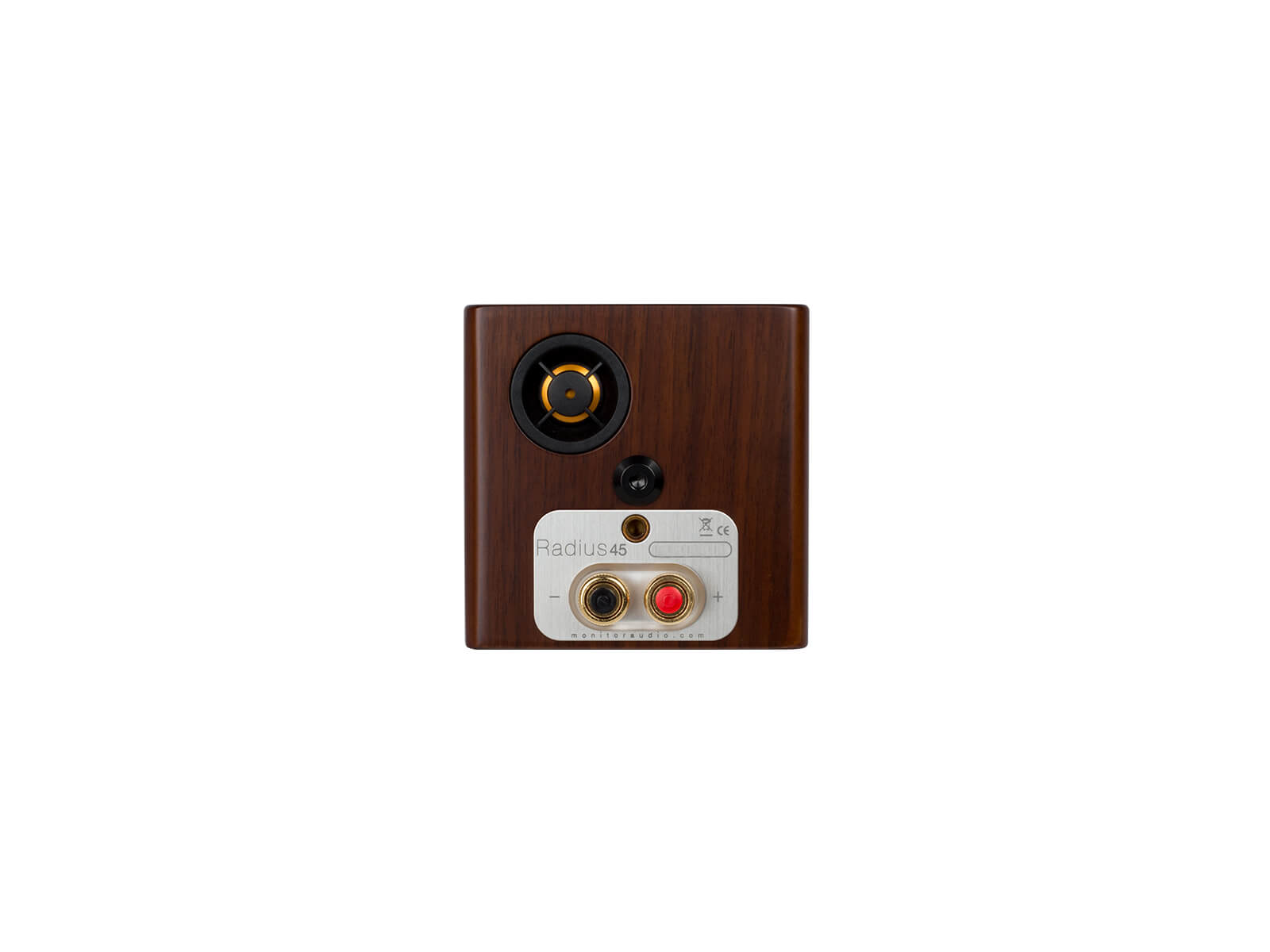

• 3/4" Gold C-CAM tweeter, rear-firing to enhance sound dispersion characteristics
• Single through-bolt driver fixing. Provides mechanical de-coupling properties resulting in enhanced mid-band clarity and resolution. Through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
• Single point ¼" x 20TPI wall fixing. Use the optional Monitor Audio speaker mount or any standard wall bracket
• Optional floor-stand with internal (pre-wired) cable management system

Frequency Response  120 Hz — 20 kHz

Sensitivity (1W@1M)  87 dB

Nominal Impedance  8 ohms

Power Handling (RMS)  25 W

System Power Handling (RMS)  50 W

Recommended Amplifier Requirements  15 — 50 W

Maximum SPL  101 dBa

Bass Alignment  Sealed Cabinet

Drive Unit Complement  1 x 3" (75 mm) MMP II cone bass/mid-range Driver  1 x 3/4" (20 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions (H x W x D)  100 x 100 x 100 mm (3^15/16 x 3^15/16 x 3^15/16")

Cabinet Dimensions (Including Grille and Terminals (H x W x D))  100 x 100 x 124 mm (3^15/16 x 3^15/16 x 4^7/8")

Cabinet Dimensions (Including Grille and Bracket (H x W x D))  100 x 100 x 162 mm (3^15/16 x 3^15/16 x 6^3/8")

Pre-Construction Bracket  Optional - Monitor Audio Speaker Mount (MASM)

Weight  1 kg (2 lb 4 oz)

Sold As  Pair
