JBL-Stage 245C White

Quad 4.5-inch (114mm) Polycellulose Ribbed Cone Woofers

Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs.

These woofers produce deep, accurate, room filling bass.

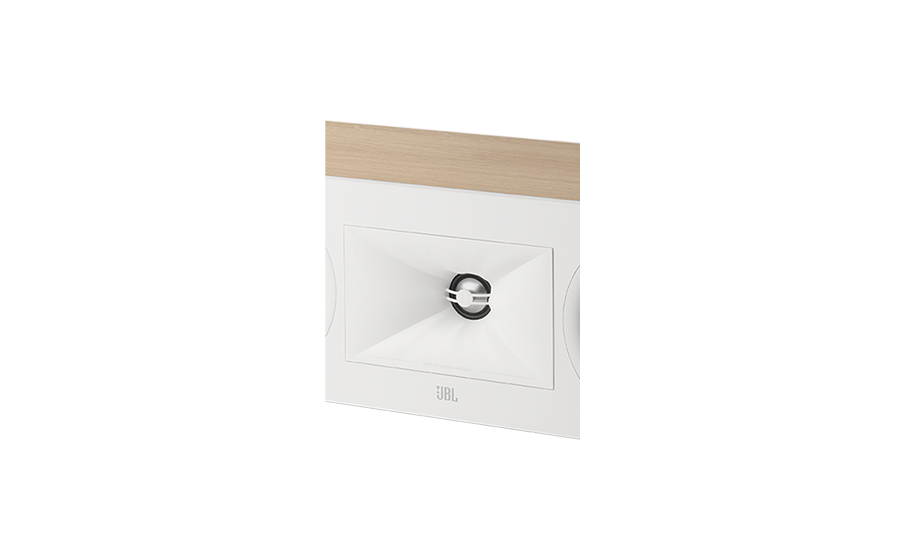

1-inch (25mm) Anodized Aluminum Tweeter in a Next Generation HDI™ Waveguide

Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis.

The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics.

Precision 2.5-Way Crossover

The 245C center channel model features a unique two and a half-way crossover design. This unique design crosses over the top woofer right below the tweeter’s output, while the other woofer is crossed over at a lower frequency.

This creates a dynamic mid-range but both woofers still extend as deep as they can go for powerful bass. This produces cohesive balanced output with a robust low end that can be both heard and felt.



Description

2.5-Way Quad 4.5-inch (114mm) Center Channel Loudspeaker

Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 245C is a center channel loudspeaker and is voiced to blend seamlessly with Stage 2

floorstanding mains, bookshelf mains, or even In-wall mains. This loudspeaker features a 2.5-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter,

and quad 4.5-inch (114mm) Polycellulose ribbed cone woofers that provides deep, signature JBL bass.

General Specifications

Type

Center Channel Loudspeaker System

Low Frequency Driver

Quad 4.5-inch (114mm) Polycellulose Ribbed Cone

High Frequency Driver

1-inch (25mm) Anodized Aluminum

Waveguide

Next Generation HDI™

Recommended Amplifier Power

20-150W

Frequency Response ± 6dB

55Hz-25kHz

Sensitivity @ 1M, 2.83V

91dB

Nominal Impedance

6 Ohms

Crossover Frequencies

1.3kHz/2.0Khz

Enclosure Tuning

Bass Reflex via Dual Rear-Firing Tuned Ports

Finish

Espresso or Latte

Dimensions

Dimensions (HxWxD)

10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm)

Product Weight

26.4lbs. (12.0kg)

Shipping Weight

32.4lbs. (14.7kg)

Shipping Units of Measure

Each

What's in The Box?

• 1 x 245C
• 6 x Anti-Slip Pads
• 1 x Speaker Grille
• 1 x Safety Sheet
• 1 x Quick-Start Guide

Κατασκευαστές	JBL
Χρώμα	White
Ηχεία	Ηχεία Κεντρικά
