Bryston BP-2 Phono Stage

Bryston's BP-2 MM/MC is a compact phono stage that packs a huge amount of performance into a one-third size component that excels with both MM moving magnet and MC moving coil cartridges.

It boasts exceptionally flat frequency response of +/-0.1dB 20 Hz - 20 kHz with inverse RIAA EQs.

Modules include a TF-2 Step Up Transformer and the PS-3 Power Supply.

Configurability Options

The BP-2 MM/MC is designed with different internal settings to match your MM moving magnet and MC moving coil phono cartridge.

For your moving coil cartridge, the BP-2 MM/MC has an internal 20db step-up transformer offering 1:10 step-up for mc cartridges up to 45 ohms - optimum 25 ohms with > 0.3 mV output.

For low-output moving coil cartridges, you will need to add the separately available Bryston TF-2 Step-up Transformer for compatibility with the BP-2 MM/MC. A highly accurate transformer applies the right boost with no added noise.

Moving magnet cartridges perform best when presented with a capacitive load. Bryston's ultra clean gain stage ensures the right boost and load with very low noise. The BP-2 offers four settings for capacitive loading (with between

100 and 400 pF capacitance) which can be set internally with jumpers. The desired loading for your cartridge may be found in the documentation included with the cartridge. Gain with MM cartridges is 41 dB.

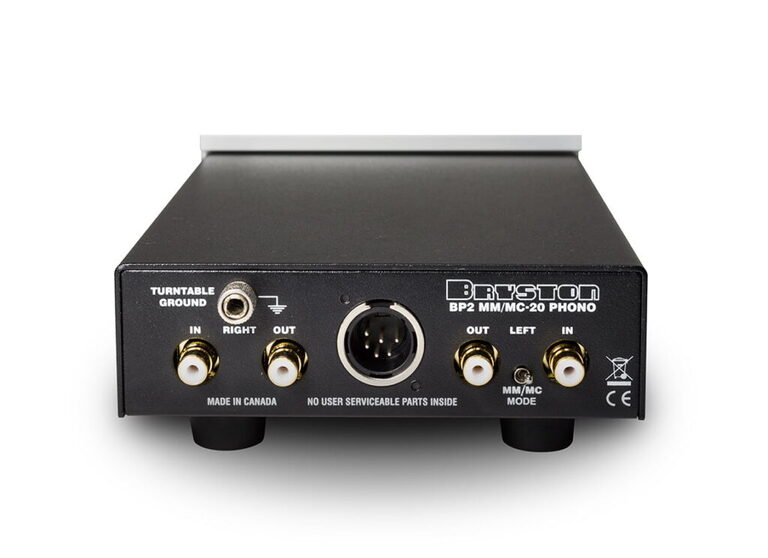

Connections

Connections consist of one pair of unbalanced RCA inputs and outputs. The rear panel also contains a ground terminal. There is also an input for the separately available Bryston PS-3 (or MPS-2) power supply.
