Product Details
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1200P is the foundation of a complete HDI Series surround system.
This powered subwoofer features a 12-inch (300mm) Poly-plas™ cone woofer driven by a 1,000 Watt amplifier for powerful dynamics and incredibly accurate sound reproduction.
The subwoofer driver in the HDI-1200P takes advantage of the core JBL transducer DNA found in the HDI woofers, delivering maximum output with significantly reduced distortion.
This powerful 12-inch (300mm) driver is based on a cast-aluminum frame that supports a large Symmetrical Field design ceramic motor structure with a vented pole using flared exits.
A 3-inch long-throw voice coil drives the high-density Poly-plas™ cone. The entire assembly has been Klippel and FEA optimized to extract maximum performance in system.
In combination with the 1,000 Watt amplifier and the bass-reflex tuned enclosure, the HDI-1200P plumbs the depths of low frequencies adding a solid foundation and visceral realism to movies and modern music.

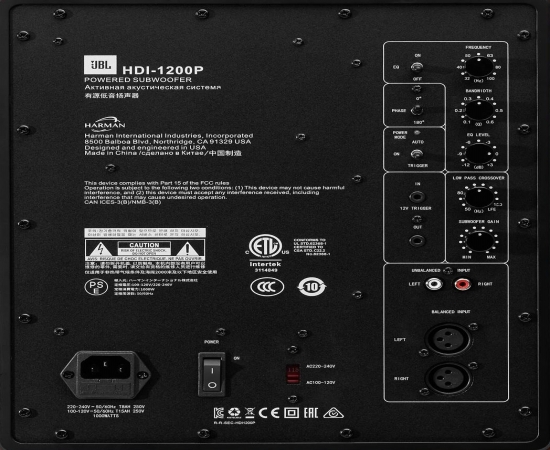

The HDI-1200P amplifier offers a choice of RCA or XLR line-level inputs, along with a full complement of controls to tailor the performance for any given room or system configuration.
Gain and Low Pass Crossover controls are provided along with a selectable Phase switch and single-band Parametric EQ controls.
System integration is managed via selectable Auto Power switch or the 12V Trigger input with pass-thru output. The platform delivers 1,000 Watts RMS with significant peak power output to
handle even the largest dynamic demands. Advanced protection and monitoring ensures that the HDI-1200P will continue to deliver optimal performance under less-than-ideal conditions.
The HDI-1200P enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual down-firing, computer-optimized flared ports.
The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.
A black cloth, magnetically attached grille completes the elegant appearance.
Highlights & Specs
HDI-1200P Highlights
- 1,000 Watt RMS Class D amplifier
- Cast frame, Poly-plas™ cone woofer with 3-inch voice coil
- Single-band Parametric EQ
- Low Pass Crossover and Gain controls with selectable Phase switch
- RCA & XLR line-level inputs
- Contemporary design with premium finishes including high-gloss Black, satin Gray Oak wood veneer, and satin Walnut wood veneer
General Specifications
| Low Frequency Driver | 12” (300mm) black Poly-plas™, cast-frame woofer |
|---|---|
| Recommended Amplifier Power | 1000W rms |
| Crossover Frequency | 50Hz – 150Hz (variable) 24dB/octave |
| Frequency Response | 28Hz – 150Hz (-6dB) |
| Enclosure Type | Bass-reflex design with down-firing ports |
| Power Requirements | 100V – 240V 50/60Hz |
| Power Consumption (idle/max) | <0.5W (standby) |
| Power Consumption (idle/max) | 1180W/7.7A(max-230Vac) |
| Power Consumption (idle/max) | 1230W/12.87A(max-120Vac) |
| Power Consumption (idle/max) | 1190W/15.97A(max-100Vac) |
| Dimensions (H x W x D) | 16.95 x 16.3 x 17.77” (430.5 x 414 x 451.3mm) |
| Net Weight | 70.8 lbs (31.79kg) |
| Κατασκευαστές | JBL |
|---|---|
| Χρώμα | Black |
| Ηχεία | Subwoofers |
