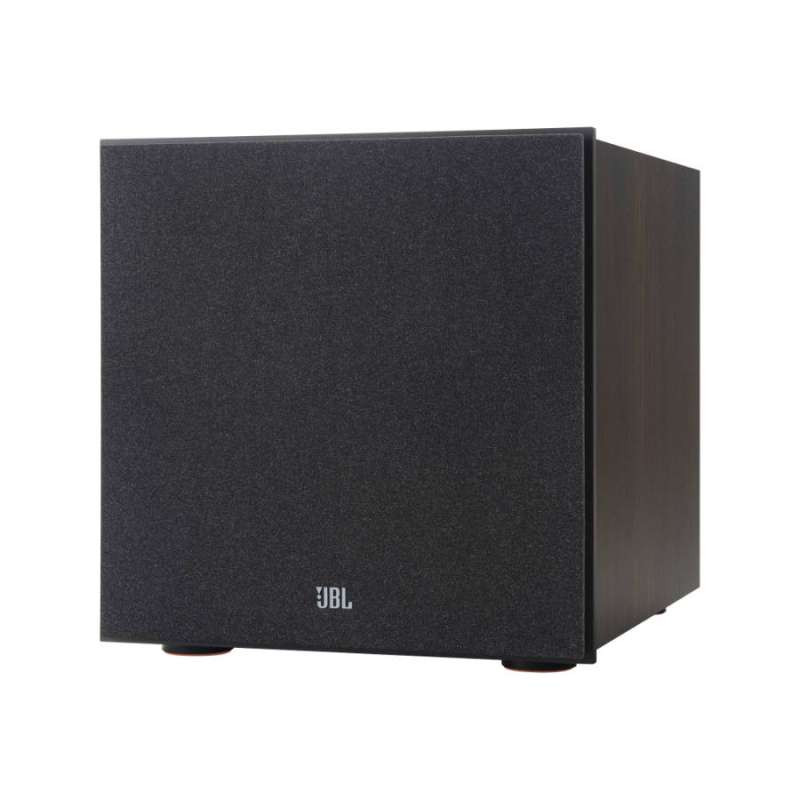

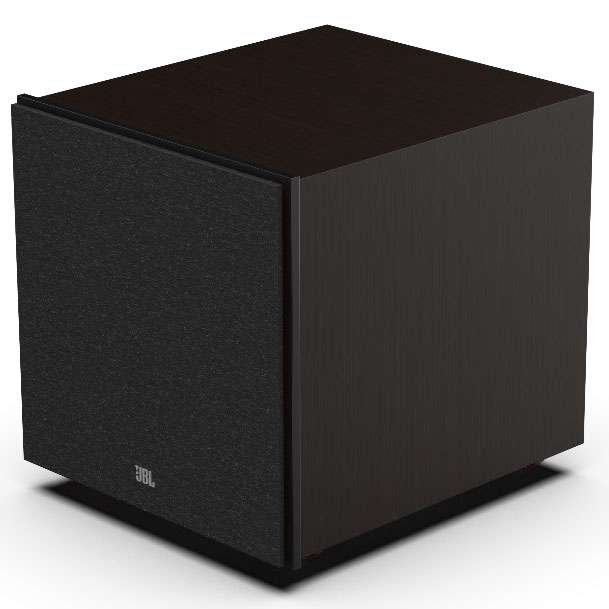

JBL Stage 200P Black / Ενεργό Subwoofer

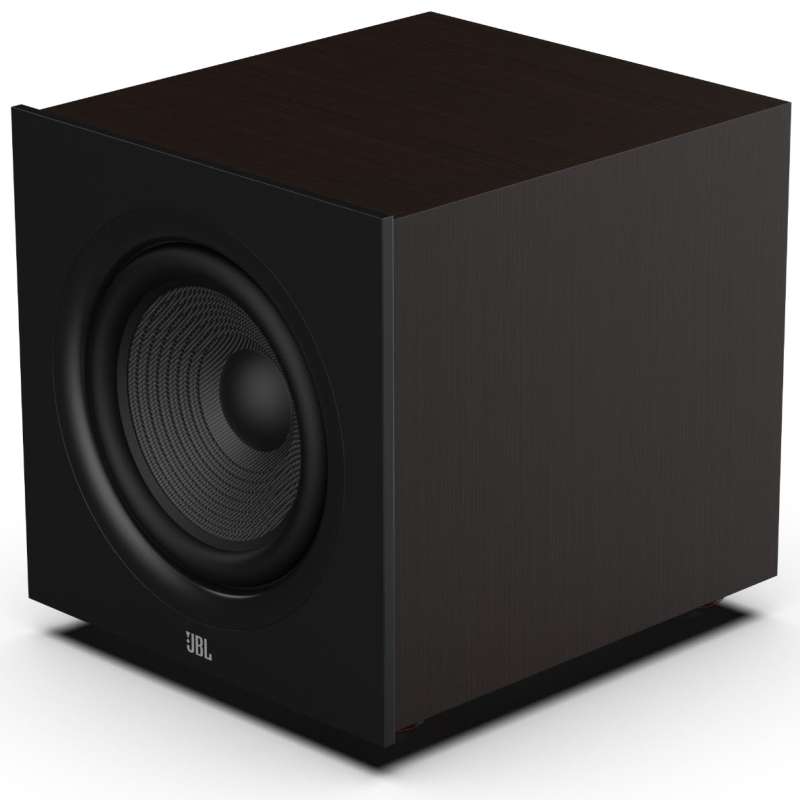

10-inch (250mm) Polycellulose Ribbed Cone Low-Frequency Woofer

Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs.

These woofers produce deep, accurate, room filling bass.

150-Watts RMS Amplifier (300 Watts Peak Power)

The built-in high-performance 300-watt amplifier provides impactful and memorable sound quality deserving of the JBL name.

The 200P can be placed anywhere in the room and connects to your AVR to create a stereo or multi-channel home theater system with impactful bass and unprecedented performance.

Bass-Reflex Design with Dual Rear-Firing Flared Ports

The Bass-Reflex design of the 200P use dual rear-firing flared ports. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.



Description

10-inch (250mm) 300W Powered Subwoofer

Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 200P is a 300W powered subwoofer perfectly matched with the entire Stage series and

deliver the low frequency excitement that customers crave. This subwoofer features a front-firing high excursion 10-inch (250mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep,

powerful, signature JBL bass. A full complement of controls provides for easy system integration.

General Specifications

Type

Powered Subwoofer

Low Frequency Driver

10-inch (250mm) Polycellulose Ribbed High Excursion

Amplifier Power

150W RMS (300W Dynamic)

Frequency Response ± 6dB

28Hz-150Hz

Crossover Frequencies

50Hz-150Hz (variable) 24dB/octave

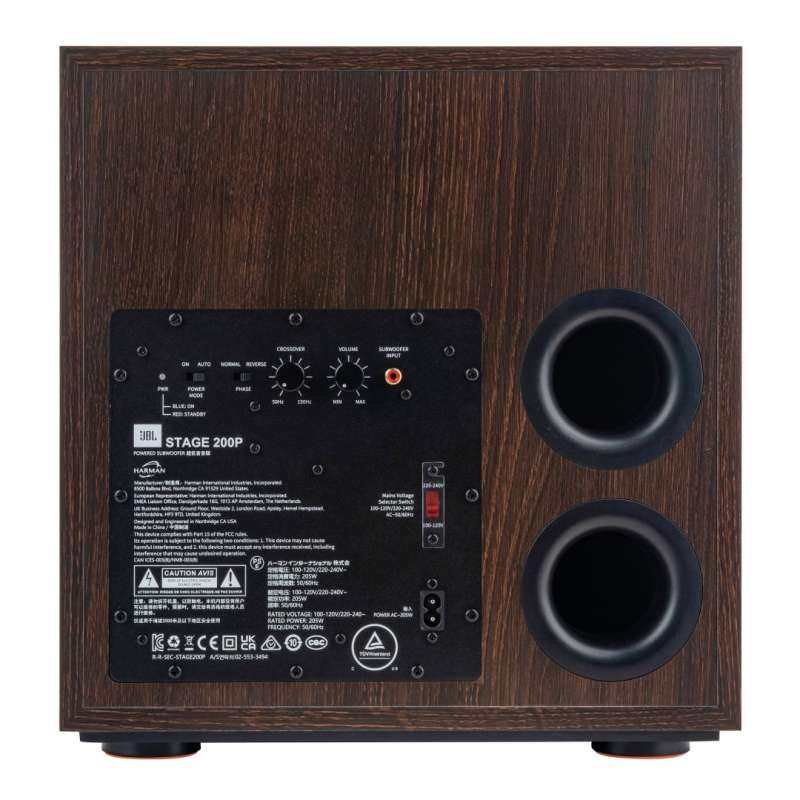

Controls

35Hz-150Hz

Controls

Auto Power, Crossover, Level, Phase

Inputs

One (1) Line-Level LFE Input

Enclosure Tuning

Bass-Reflex via Dual Rear-Firing Tuned Ports

Power Requirements

120V, 60Hz (US) 220-230V, 50/60Hz (EU)

Power Consumption

<0.5W (standby) / 205W/1.6A (max - 230V) / 205W/3.15A (max - 120V)

Dimensions

Dimensions (HxWxD)

14.2in x 13.8in x 15.2in (361mm x 350mm x 385mm)

Product Weight

31.8lbs. (14.4kg)

Shipping Weight

40.3lbs. (18.3kg)

Shipping Units of Measure

Each

What's in The Box?

• 1 x 200P
• 1 x Power Cord
• 4 x Floor Spikes
• 1 x Speaker Grille
• 1 x Safety Sheet
• 1 x Quick-Start Guide

Κατασκευαστές	JBL
Χρώμα	Black
Ηχεία	Subwoofers
