Dual CS 418

CS 418

Robust, precise, reliable, with a 5-year warranty for carefree music enjoyment

The turntable series starts with the CS 418, which integrates high-quality components from the larger models and already places the highest emphasis on precision.

With the Ortofon 2M Red cartridge and switchable MM phono preamplifier, the CS 418 not only offers outstanding value for money, but also a very balanced sound.

Ease of use is guaranteed with the characteristic features of the CS series. The stepless antiskating can be easily adjusted using a rotary knob with a clear scale.

The electronic adjustment of the three speeds is conveniently carried out via a rotary switch, while the appropriate pickup can be easily changed using the headshell.

Details:

Plinth:

Solid MDF

• MDF construction with a black vinyl veneer
• Elastomer vibration absorber inside the feet
• Removable dust cover

Platter:

Aluminium Die-cast

• Aluminium die-cast, long term precision
• Heavy rubber mat for resonance damping

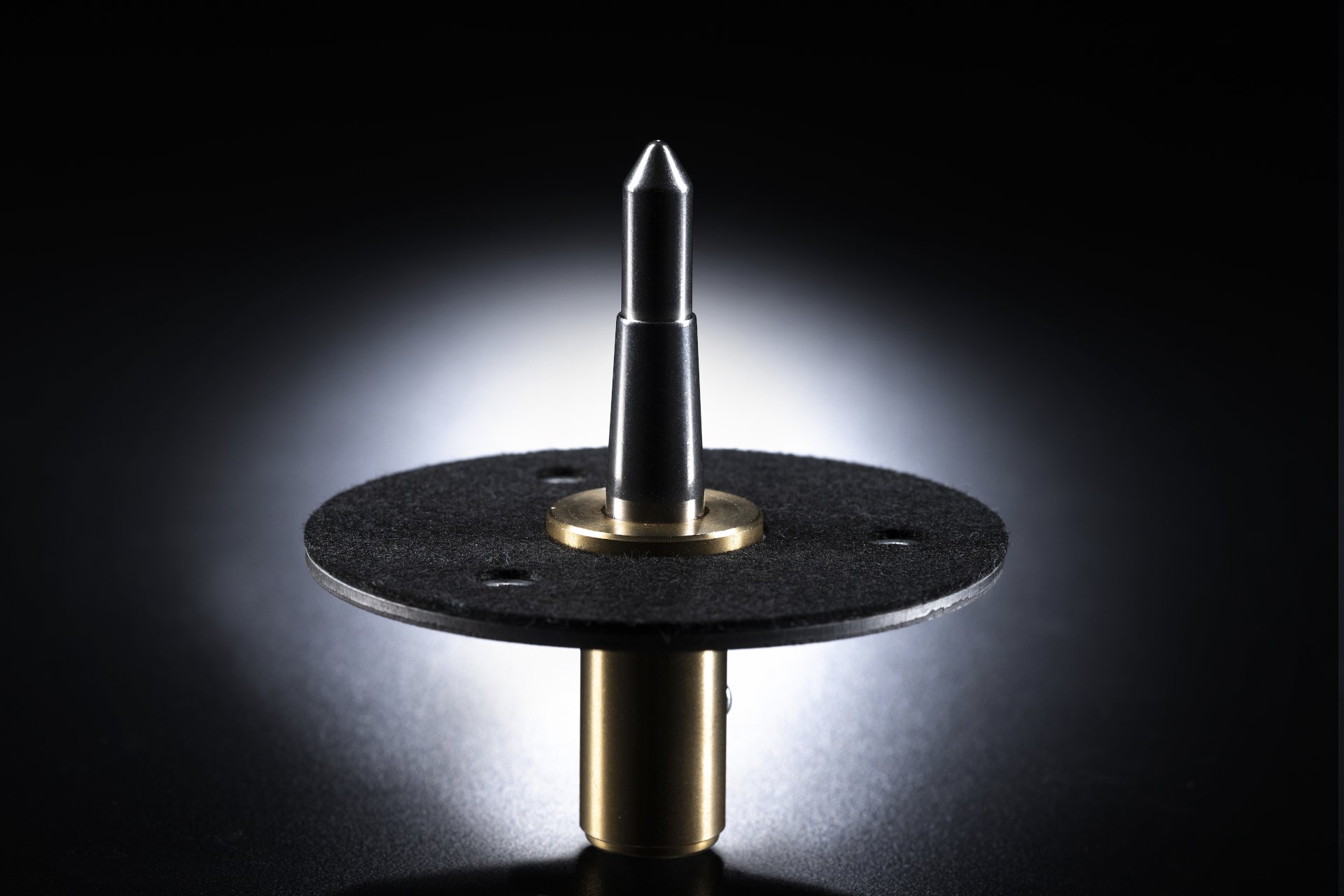

• Hardened steel spindle in a brass bushing

Tonearm:

Straight, statically balanced

• Solid aluminium construction with ball-bearings
• Damped tonearm lift
• Accurate spring loaded antiskating

Drive:

DC- Motor / Belt

• Selector switch for 33 / 45 / 78
• Rubber mountings for vibration decoupling
• Precision cut belt for lower wow & flutter

TECHNICAL SPECIFICATIONS:

Drive: Belt

Speed settings: 33/45/78

Wow & Flutter: < ±0,1 % (DIN rated)

Platter:

Material: Aluminium die-cast

Mat: Rubber 2,5 mm

Bearing: Hardened steel spindle Brass bushing

Diameter: 305 mm

Weight (incl. Mat): 850 g

Tonearm: Auto-Start/-Stop-Function: ✕

Bearing: Ball-bearing

Effective length: 221,5 mm

Offset Angle:M 25,6°

Overhang: 19 mm

Type: statically balanced

Stylus Pressure Range: 0 g to 4 g

Cartridge Weight Range: 5 g to 9 g

Factory installed pick up:Ortofon 2M Red

Plinth:

Material:  MDF

Surface finish: Vinyl veneer / Black

Feet: Ø 62 mm / Elastomer

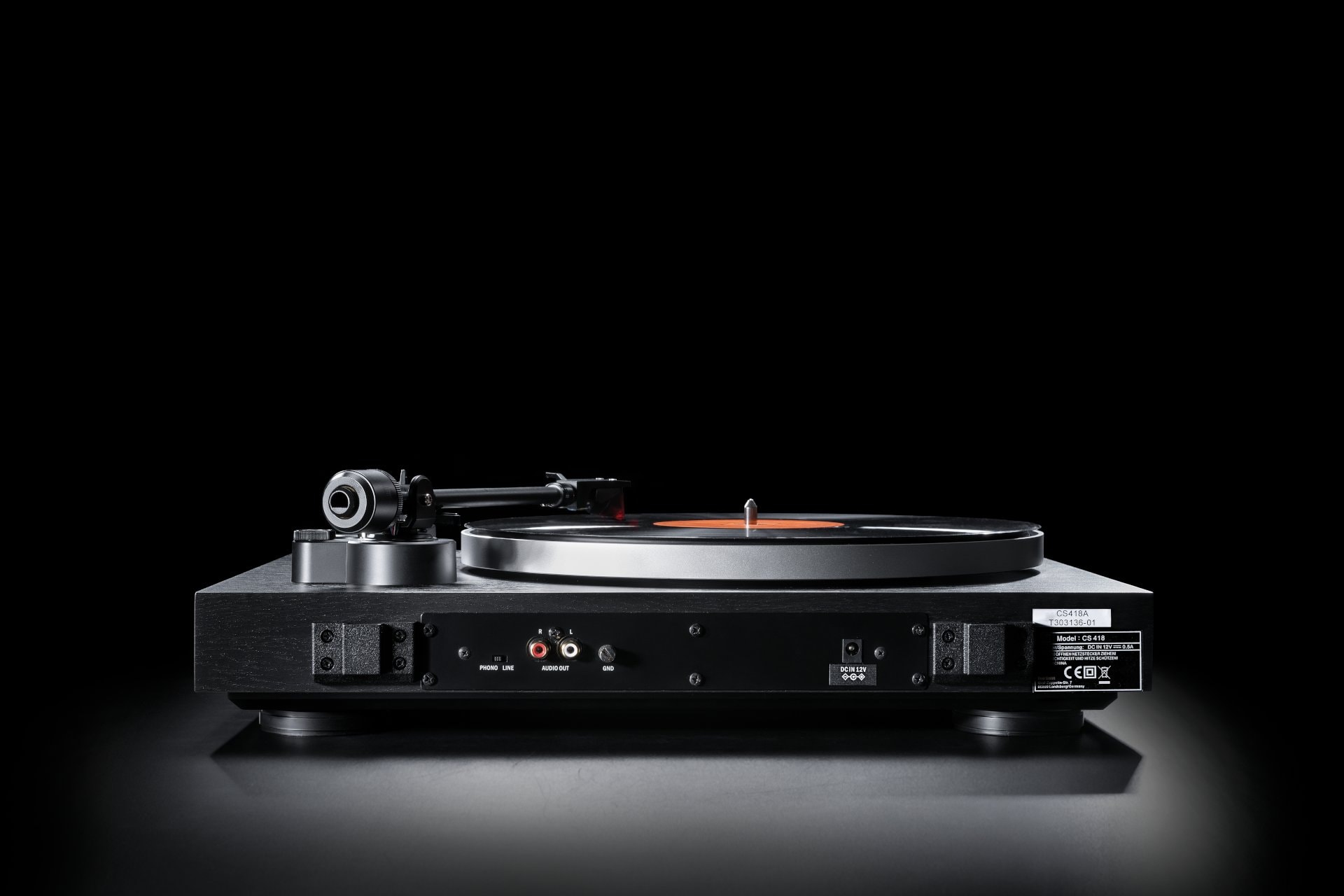

Connection: RCA socket

Connection to Phono Input: ✓

Connection to Line Input: ✓

Digital Output: ✕

Dimension, closed dustcover: 435 x 367 x 145 mm

Dimension, open dustcover: D: 415 mm / H: 400 mm

Weight: 5,8 kg

Power plug AC / DC: External power supply
