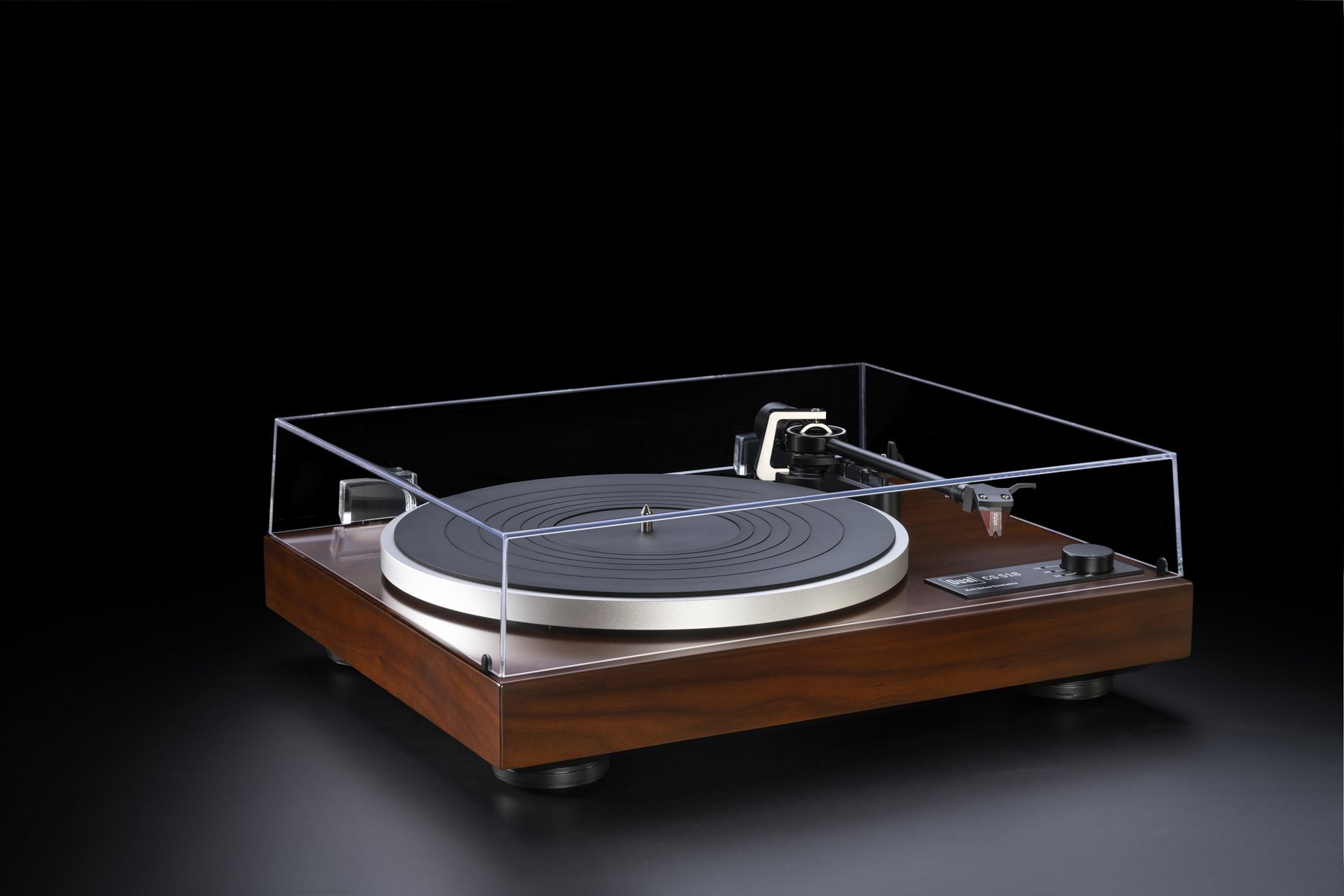

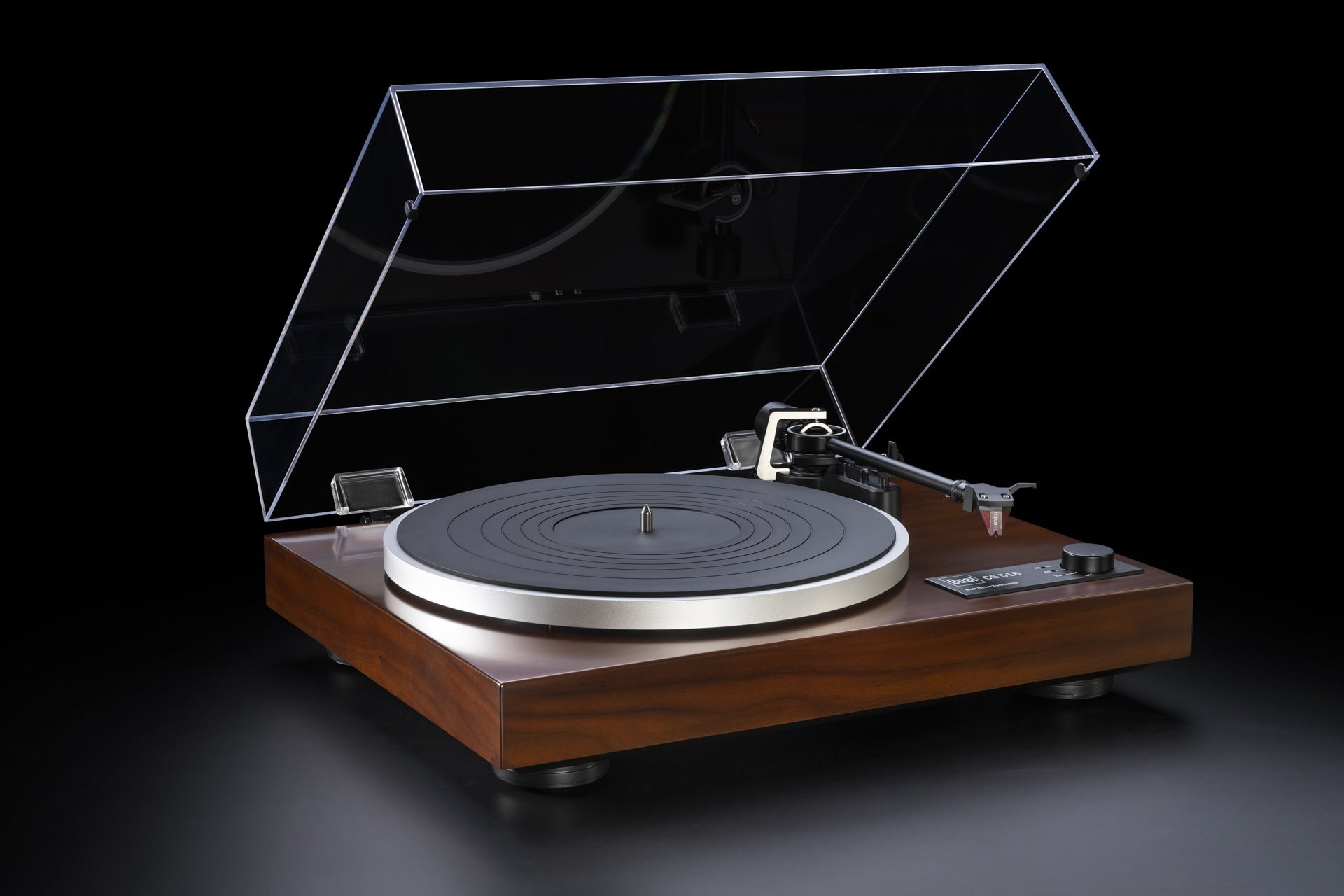

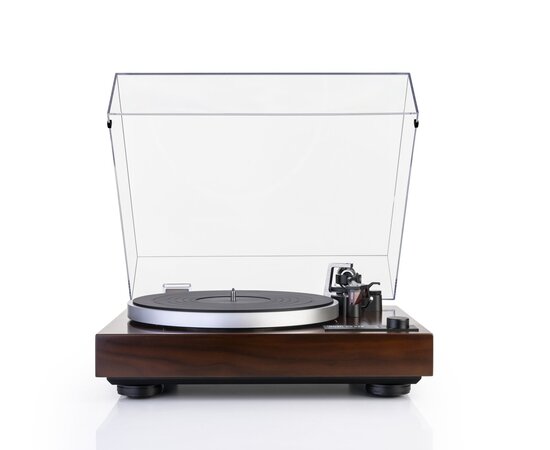

Dual CS 518 Veneer Wallnut

CS 518

The perfect start to the high-end

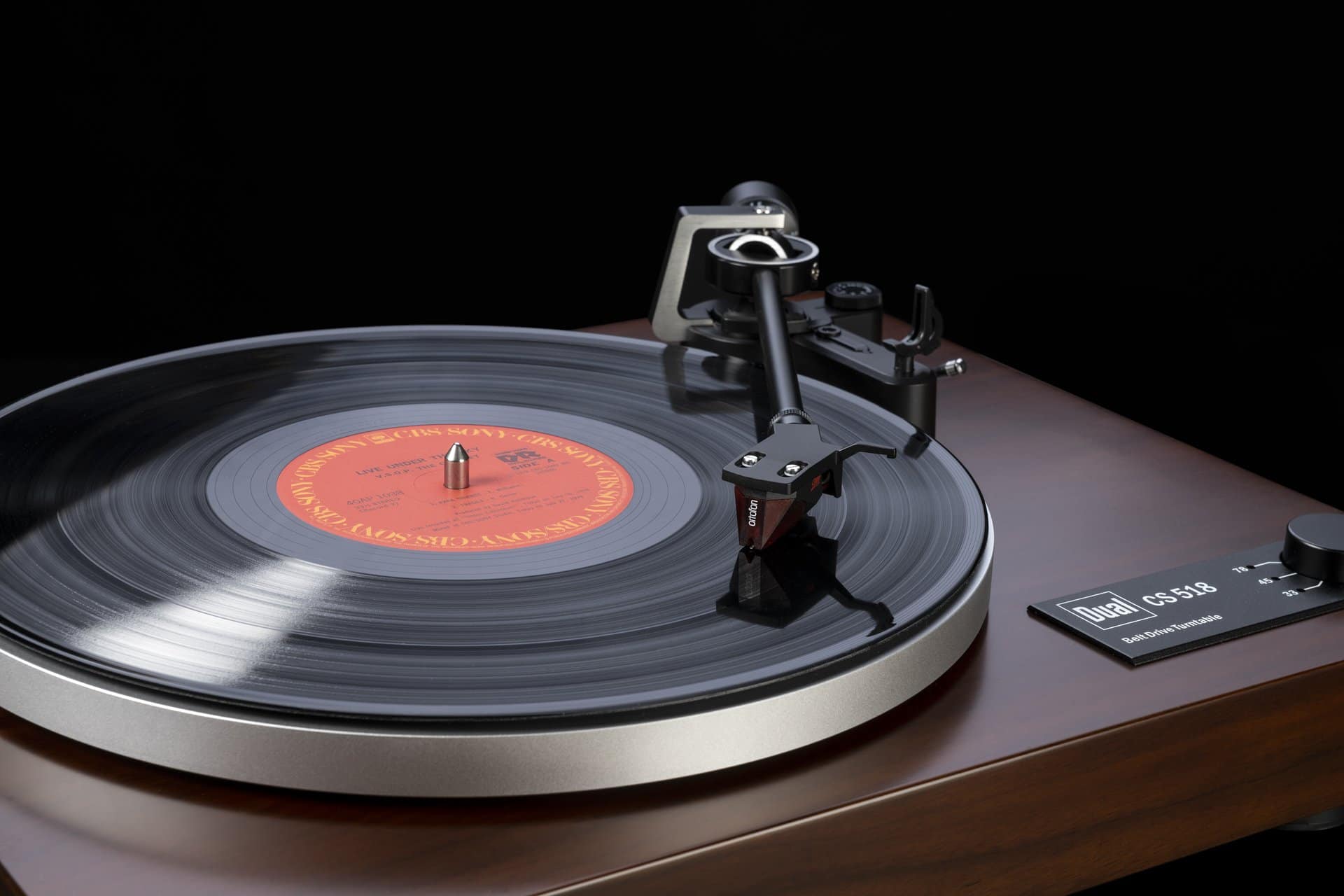

The CS 518, ideal for vinyl enthusiasts, impresses with a precise twin gimbal tonearm and the finest pivot ball bearings.

The classic dual tonearm guides even the most demanding cartridges precisely and safely for a first-class listening experience.

With the Ortofon 2M Red cartridge and switchable MM phono preamplifier, the CS 518 not only offers outstanding value for money, but also a very balanced sound.

Ease of use is guaranteed with the characteristic features of the CS series. The stepless antiskating can be easily adjusted using a rotary knob with a clear scale.

The electronic adjustment of the three speeds is conveniently carried out via a rotary switch, while the appropriate pickup can be easily changed using the headshell.

TECHNICAL SPECIFICATIONS:

Drive:

Drive: Belt

Speed settings: 33/45/78

Wow & Flutter: < ±0,1 % (DIN rated)

Tonearm:

Auto-Start/-Stop-Function: ✕

Bearing: 4 x Pivot ball-bearing / twin gimbal mounting

Effective length: 221,5 mm

Offset Angle: 25,6°

Overhang: 19 mm

Type: statically balanced

Stylus Pressure Range: 0 g to 4 g

Cartridge Weight Range: 5 g to 9 g

Factory installed pick up: Ortofon 2M Red

Platter:

Material: Aluminium die-cast

Mat: Rubber 2,5 mm

Bearing: Hardened steel spindle Brass bushing

Diameter: 305 mm

Weight (incl. Mat): 850 g

Plinth:

Material: MDF

Surface finish: Vinyl veneer / Black
Option: veneer Wallnut

Feet: Ø 62 mm / Elastomer

Connection: RCA socket

Connection to Phono Input: ✓

Connection to Line Input: ✓

Digital Output: ✕

Dimension, closed dustcover: 435 x 367 x 145 mm

Dimension, open dustcover: D: 415 mm / H: 400 mm

Weight: 5,8 kg

Power plug AC / DC: External power supply
