JBL-MA9100HP

Stunning audio and video performance

High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

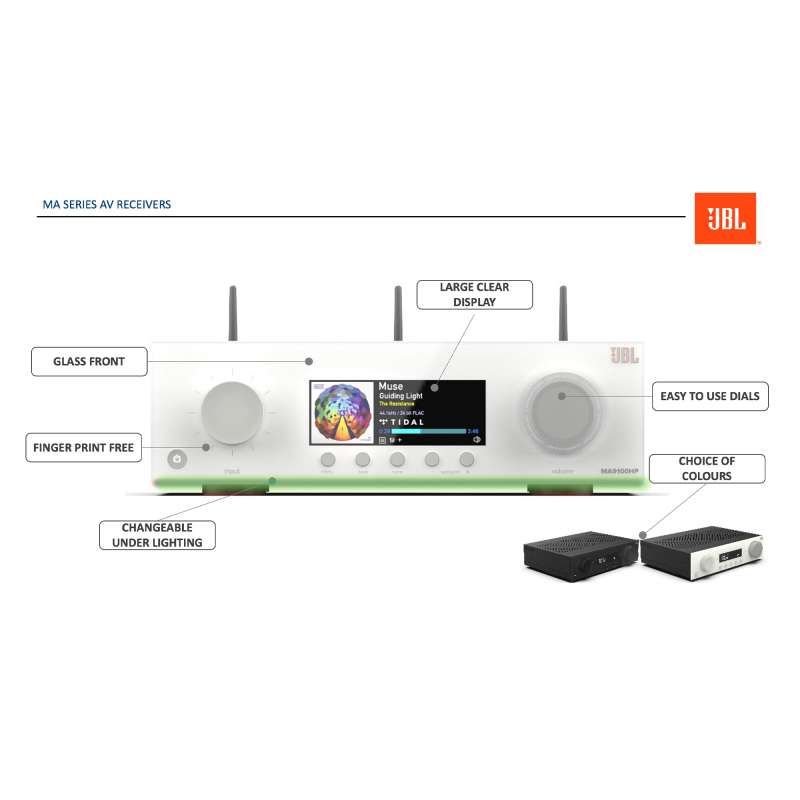

Intuitive setup with a minimalist modern design

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC

High-performance immersive surround sound

Dolby Atmos and DTS:X decoding, supports up to 9.1 or 7.1.2 or 5.1.4 channel configurations.



Description

Bring both music and movies to life with true high fidelity.

The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 9-channel decoding of

immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and

2 outputs, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA9100HP features nine channels

of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable,

additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive.

Taking performance to the next level, the MA9100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allowing

integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can be

made available in a secondary location. In addition to physical controls, the MA9100HP allows for IP control for third party control system integration.

General Specifications

HDMI eARC

Yes

HDMI Audio Return Channel

Yes

8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)

3

HDMI 2.1 enhanced gaming features

Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)

HDR 10+, Dolby Vision

Yes , Yes

File format

MP3 / MPEG-4 AAC

Pure Analog

Yes

EZ Set EQ

Yes

Front channel bi-amp

Yes

Digital signal processing

up to 24-bit/192kHz

Mains voltage

110 – 240V, 50–60Hz

Max. power consumption

900W

Standby power consumption

<0.5W

Audio Specifications

Channels

9.2

FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)

140W

Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

140 W RMS

Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

240 W RMS

Dimensions

Dimensions incl. feet and speaker terminals (H x W x D)

5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)

Weight

16.8lb (7.6kg)

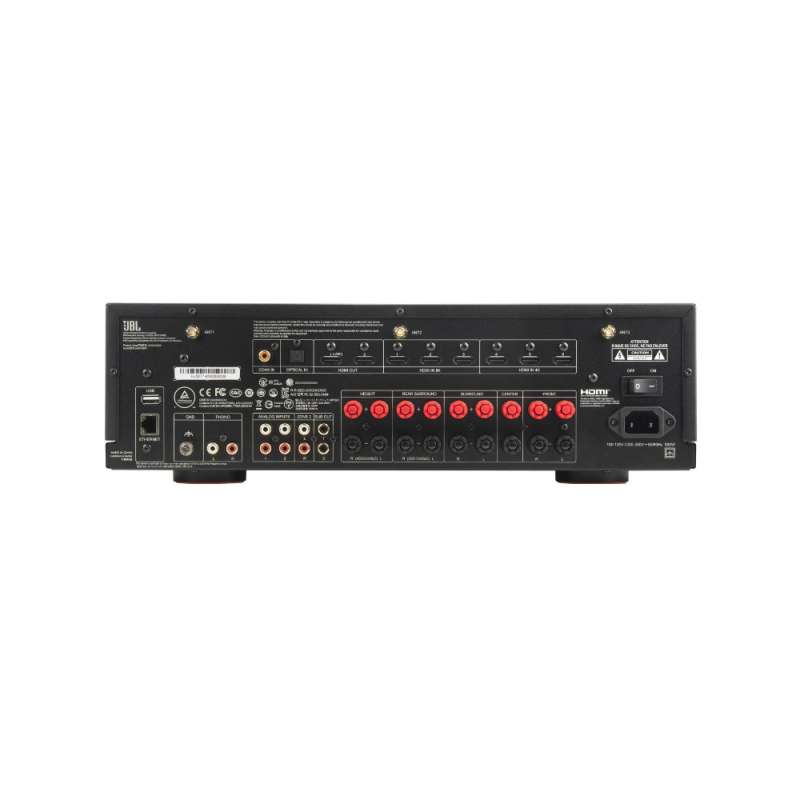

Control and Connection Specifications

HDMI Input/Output

6/ 2

Wi-Fi

Yes (2.4/5GHz)

Bluetooth receiver

Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)

Bluetooth transmit

Yes

Digital Audio Input

1 Coax, 1 Optical, 1 USB

Stereo analog input

2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground

Pre-Out (single ended RCA)

Stereo Zone 2, Subwoofer 1, Subwoofer 2

Ethernet

RJ45 Gigabit, WiFi Onboard

What's in The Box?

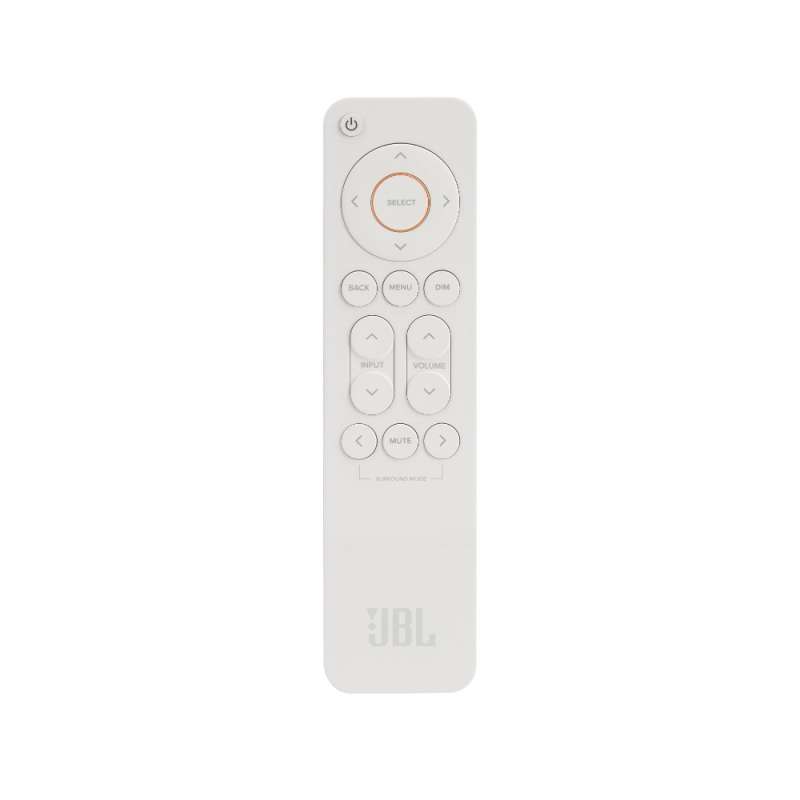

• 1x IR Remote
• 2x AAA batteries
• 1x Bluetooth antenna
• 2x Wi-Fi antenna
• 1x Power Cord
• 1x Quick-Start Guide
• 1x Safety Sheet

Κατασκευαστές	JBL
Χρώμα	White
Ενισχυτές	Πολυκάναλοι Ενισχυτές
