JBL S4700 Cherry

S4700

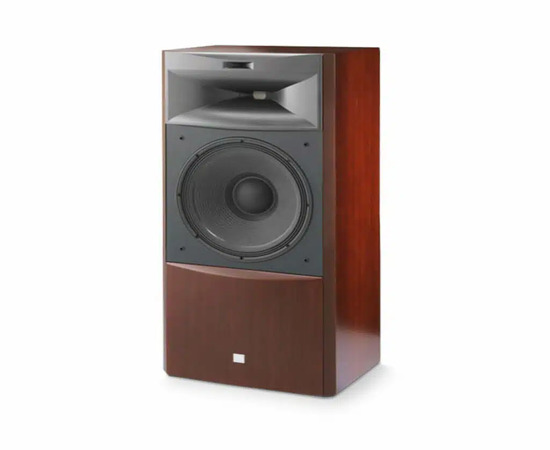

The S4700 is a floorstanding 3-way high-performance loudspeaker built upon the same professional-grade technology used in the acclaimed Project K2 S9900,

one of the most advanced and sophisticated loudspeakers in the world today.

At its foundation, the S4700 uses an all-new cast-frame 15-inch woofer (2216Nd) with a powerful dual 3-inch voice coil and neodymium motor structure for outstanding

balance with the horn-loaded compression drivers.

Mid- and high-frequencies are reproduced by a pair of titanium diaphragm compression drivers and a single-piece, SonoGlass® dual horn assembly.

The 2-inch Aqua-Plas™-coated titanium diaphragm compression driver (175Nd-3) is mated to a 90° x 60° Bi-Radial® horn and delivers mid- and high-frequencies

with lifelike dynamics and startling realism while an ultra-high frequency 0.75-inch titanium diaphragm compression driver (138Nd) with a 60° x 30° Bi-Radial horn

recreates critical air and spaciousness.

Premium-quality network components and dual binding post inputs ensure audiophile performance in any application.

The attractive furniture-grade cherry wood veneer enclosure is internally braced at critical points and is tuned via a rear-firing port.

The S4700 is intended for use in high-performance 2-channel audio systems or as an LCR loudspeaker in a JBL Synthesis multi-channel home theater installation.

Detailed Specifications:

Description: 3-Way 15″ Floorstanding Loudspeaker

Frequency Response: 38Hz – 40kHz (-6dB)

Recommended Amplifier Power: 300 Watts

Sensitivity: (2.83V @ 1m) 94dB

Nominal Impedance: 6 ohms

Crossover Frequencies: 800Hz, 12kHz

Size:  Height  x Width  x Depth  (106.8cm x 50.0cm x 37.1cm)

Weight:  (54.5kg)
