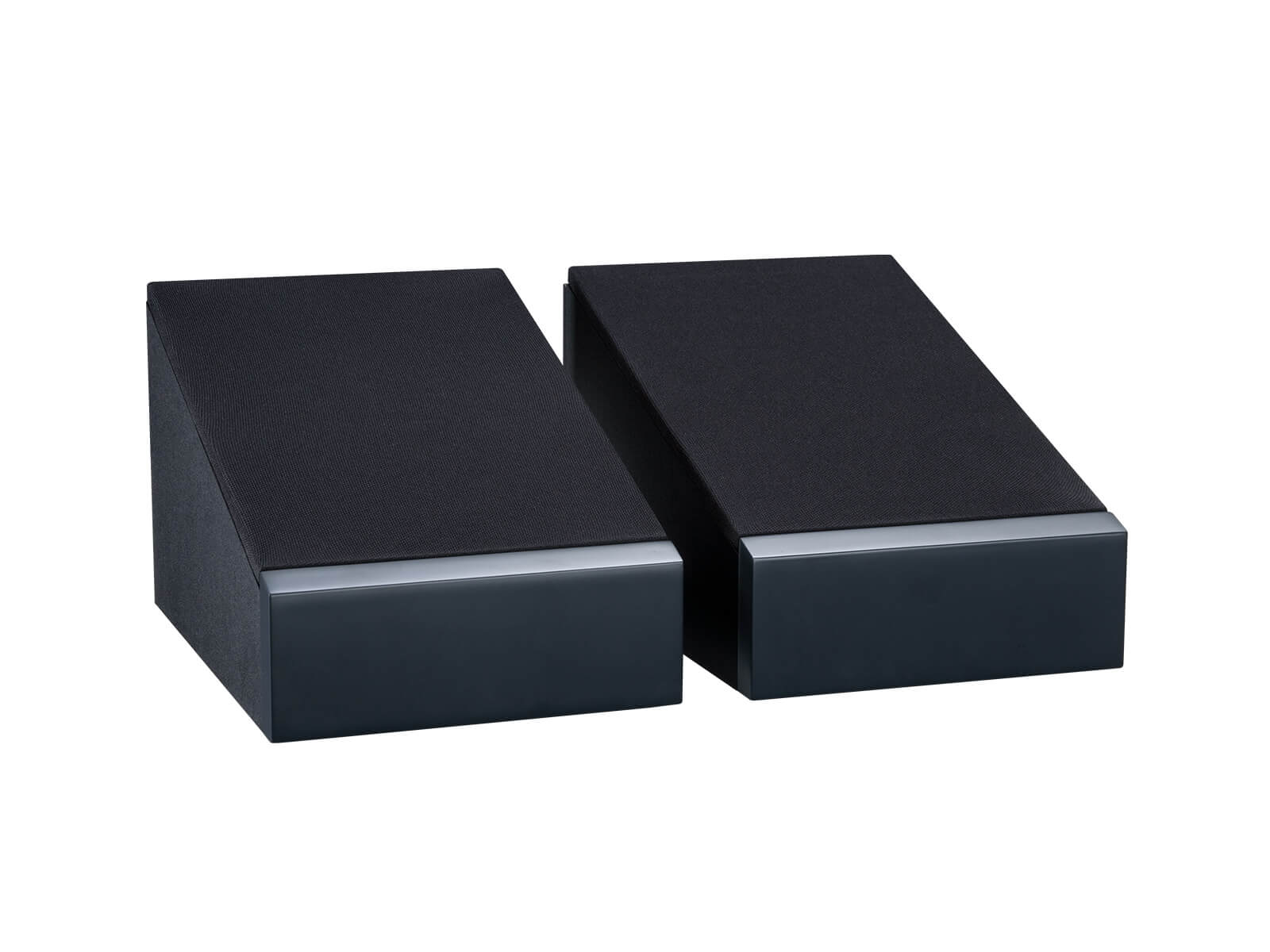

Bronze AMS Dolby Atmos® Enabled Speaker

---

Dolby Atmos brings soundtracks to life by surrounding the listener in moving audio that flows with a vivid three-dimensional realism.

When you place our Atmos speaker module on top of one of our complementary Bronze speakers, you will experience a new world of audio.



Our first Dolby Atmos enabled speaker module features a 25 mm C-CAM Gold dome tweeter with optimised waveguide and a 4" C-CAM Mid-Bass Driver to deliver a powerfully moving entertainment experience.

With Dolby Atmos, sounds are no longer constrained to channels, but can be precisely placed and moved in three-dimensional space.

A new sensation of height immerses the listener in the action, creating a full audio atmosphere and realistically depicting objects moving overhead.

Dolby Atmos renders everything from movie dialogue to whirlwind action with astonishing clarity, richness, detail, and depth. It all comes together in a sound that will thrill your senses.

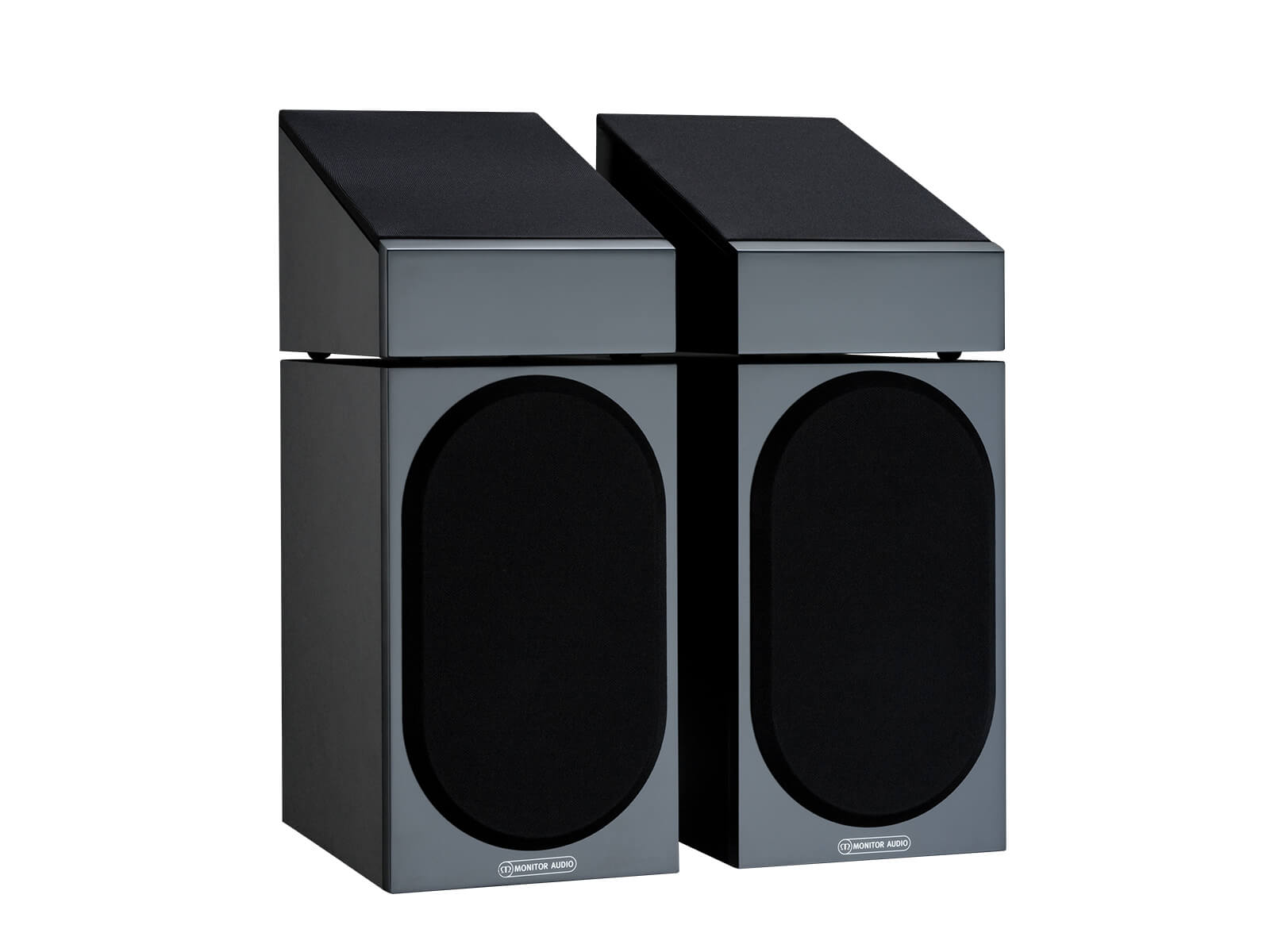

The up-firing speaker has been styled to sit on top of our Bronze 50 and Bronze 200 speakers. As it has the same footprint, it can also be paired with our

Silver 50 and Silver 200s, and it can additionally be used as a height speaker in a home cinema configuration (without Atmos functionality).



---

This product is now available to use with home theatre design software, The CEDIA Designer. Read more.

---



Key Features

• Monitor Audio's signature C-CAM Gold Dome Tweeter featuring the new Optimised Waveguide allows the tweeter’s directivity pattern to be tightly controlled in order to maximise the reflected sound off the ceiling whilst minimising the direct sound to the listener. This creates a realistic and convincing height source and incredibly lifelike sound
• Dolby Atmos® approved add-on module used to reflect sound off the ceiling in a home cinema system to create another dimension
• Styled to match and be positioned perfectly atop Bronze 50 or Bronze 200 speakers for use in any AV home cinema system

• Can be positioned directly on top of the front and/or rear speakers in a two or four Dolby Atmos® enabled speaker setup for added atmosphere
• Sealed cabinet – for accurate performance when installed in restricted voids or close to a wall
• Dedicated keyhole wall-mounts included for easy installation and flush-to-wall placement (when wall-mounted, the speaker no longer works to Dolby Atmos® principles)
• Discreet design and can be used as separate height surround speakers
• Same foot print as the Silver 50 and Silver 200 so can additionally be used with Silver Series AV system set ups



System Format  2-Way

Frequency Response (-6 dB)  120 – 25,000 Hz (Free field) 105 – 30,000 Hz (In room)

Sensitivity (2.83v @ 1m) 86 dB

Nominal Impedance  8 ohms

Minimum Impedance  4 ohms

Maximum SPL  107 dBA (pair)

Power Handling (RMS)  60 W

Recommended Amplifier Requirements  10 — 60 W

Bass Alignment  Sealed Cabinet

Crossover Frequency  2,500 Hz

Drive Unit Complement  1 x 4" C-CAM mid-range driver  1 x 25 mm C-CAM Gold Dome tweeter with optimised Waveguide

External Dimensions (Including Grille and Terminals (H x W x D))  152 x 166 x 242 mm (6 x 6^9/16 x 9^1/2")

External Dimensions (including Outrigger Feet and Spikes (H x W x D))  N/A

Weight (each)  2.5 kg (5 lb 8 oz)

Sold As  Pair
