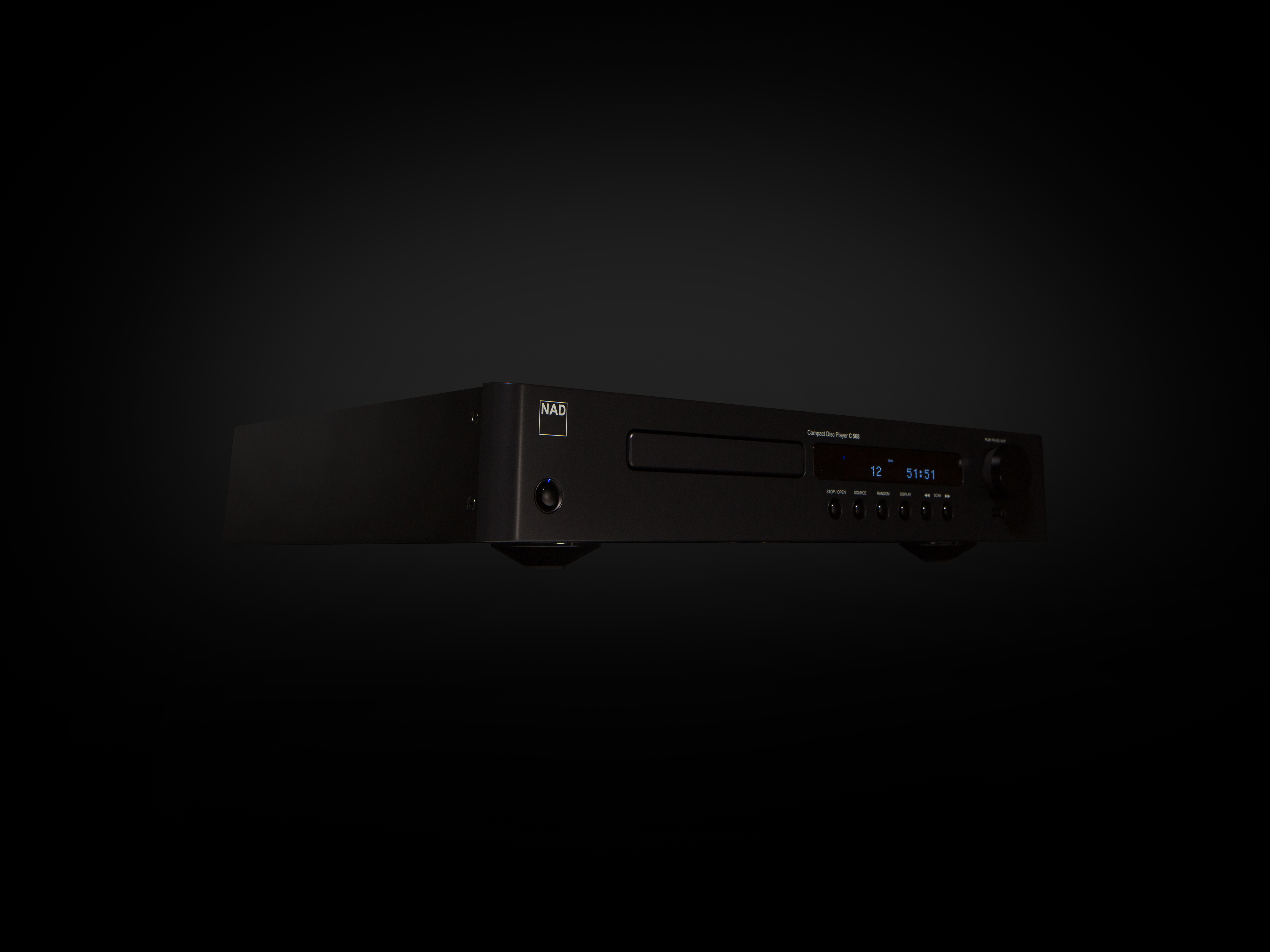

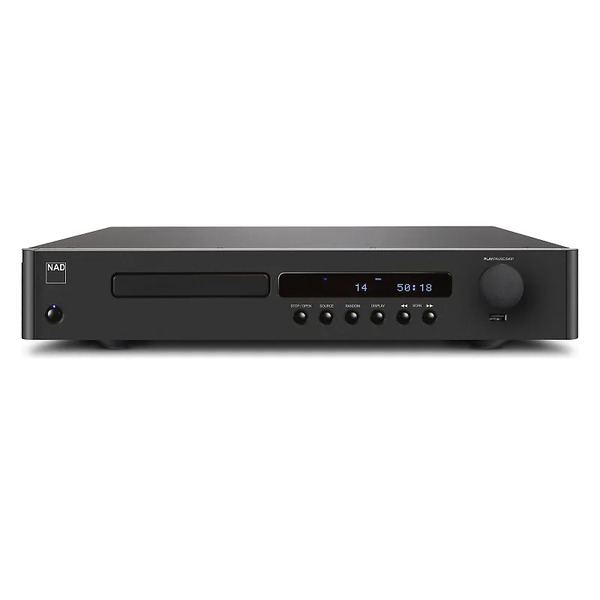

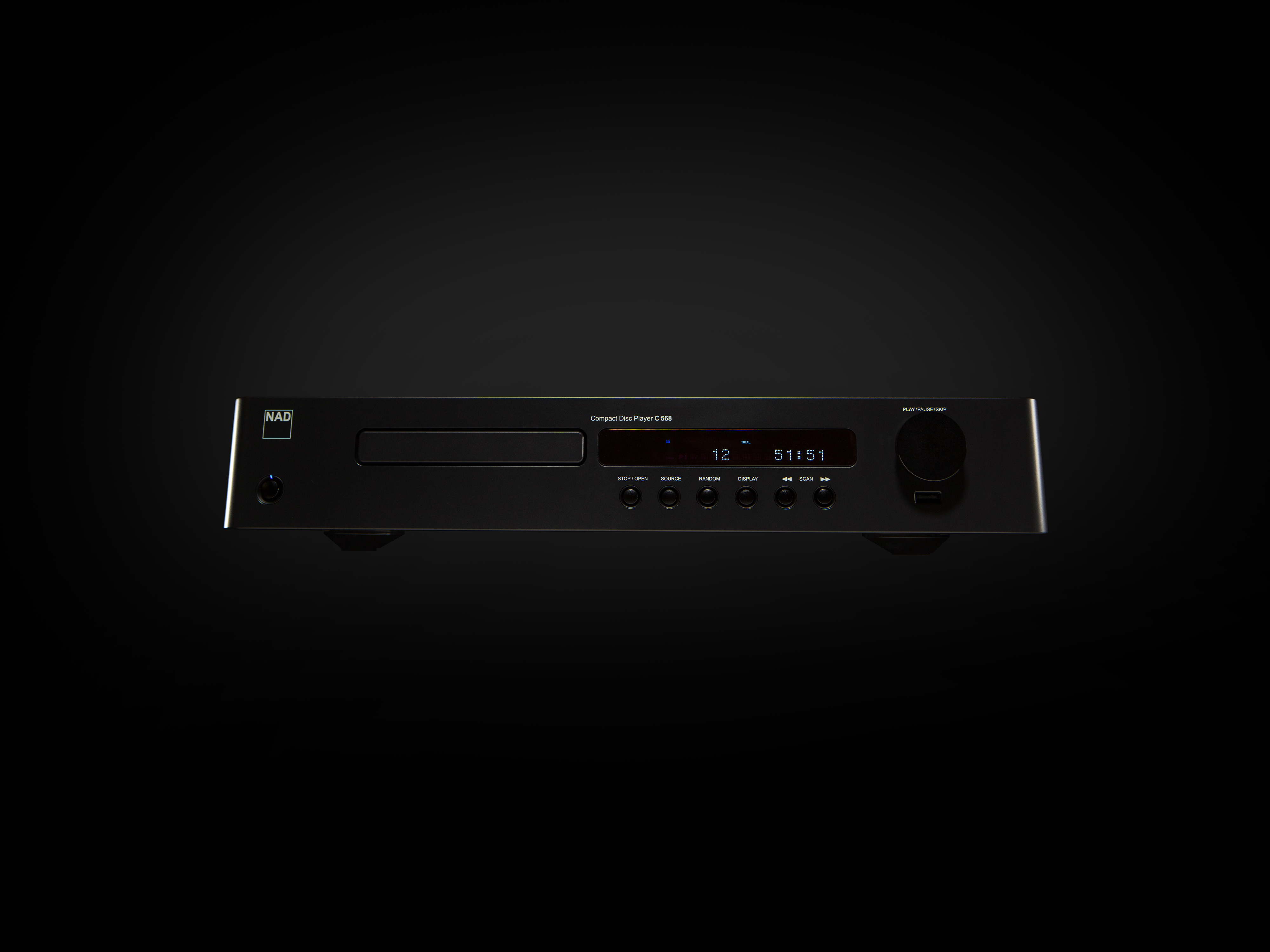

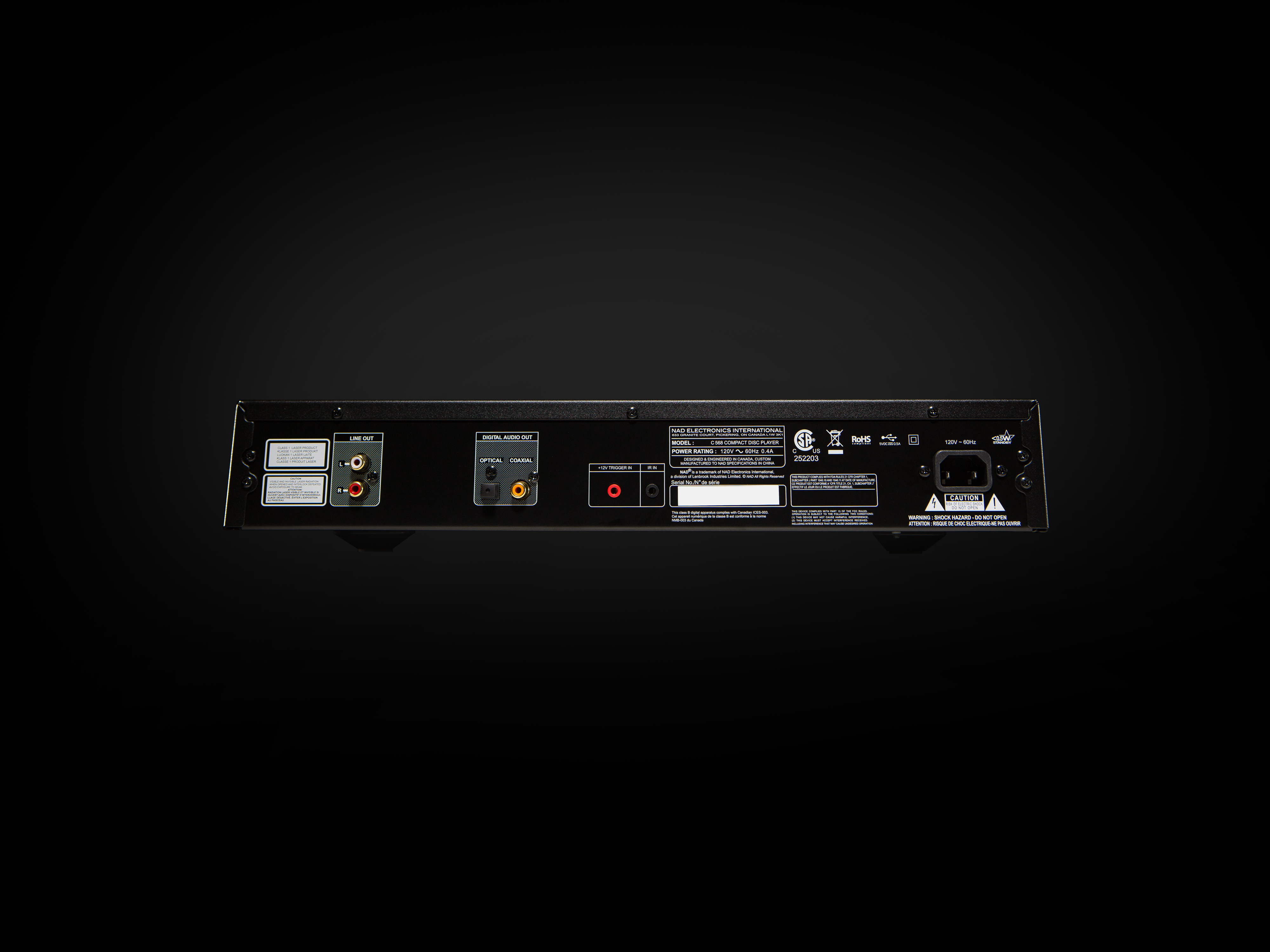

Nad Electronics C 568 CD Player

The C 568 takes the superb performance of our 5-star rated C 565BEE and steps it up to the next level. Every aspect of sonic performance is enhanced and refined, making the C 568 the ideal companion to our C 368 amplifier, or any system in need of a performance upgrade.

Key Features

• CD, CD-R and CD-RW Compatible
• USB Input supports external memory and audio rates up to 384kbps
• MP3 and WMA decoding
• NAD CD-8 full function remote control
• Ultra-High Precision Clock Module for lowest jitter
• Wolfson 24 bit Digital to Analogue Converter
• Super High-Speed OPAmps
• Coaxial Digital Output
• Optical Digital Output
• Toroid Power supply with separate power regulators for analogue and digital sections
• VFL Display with CD text
• Selectable Track, Time and Repeat
• Repeat Mode for single track or entire CD
• Program Play up to 20 tracks
• Random Play
• External IR input
• 12V Trigger input
• <0.5 watt Standby consumption
• Detachable AC cord

General Parameters

• Output level Analog: 2.2 ± 0.1 V, Optical: -22.5 ±3.5dBm, Coaxial: 650 ±150mV
• Frequency response ±0.3 dB (ref. 0 dB 20 Hz-1 kHz), ±0.5 dB (ref. 0 dB 5 kHz-20 kHz)
• Total harmonic distortion <0.01% (ref. 1 kHz, Audio LPF)
• Signal/Noise ratio 118 dB (ref. 1 kHz, A-weighted LPF Stop, Pause)
• Channel balance ±0.5 dB (ref. 0dB 1kHz)
• Dynamic range 95dB
• Channel separation >90dB
• Standby power <0.5W

USB

• Output level 2.2 ± 0.2V
• Frequency response ±1dB (ref. 0dB 20Hz – 16kHz)
• Total harmonic distortion <0.03% (ref. 0dB 1kHz, Audio LPF)
• Signal/Noise ratio 118dB (ref. 0dB 1kHz, A-weighted Pause)

Weight & Dimensions

• Gross Unit Dimensions* (W x H x D) 435 x 80 x 306mm
• Net weight 4.9kg
